1-16n/2-4b Series Bench Top Low Speed Centrifuge

Product model:

Centrifuge Series

product details

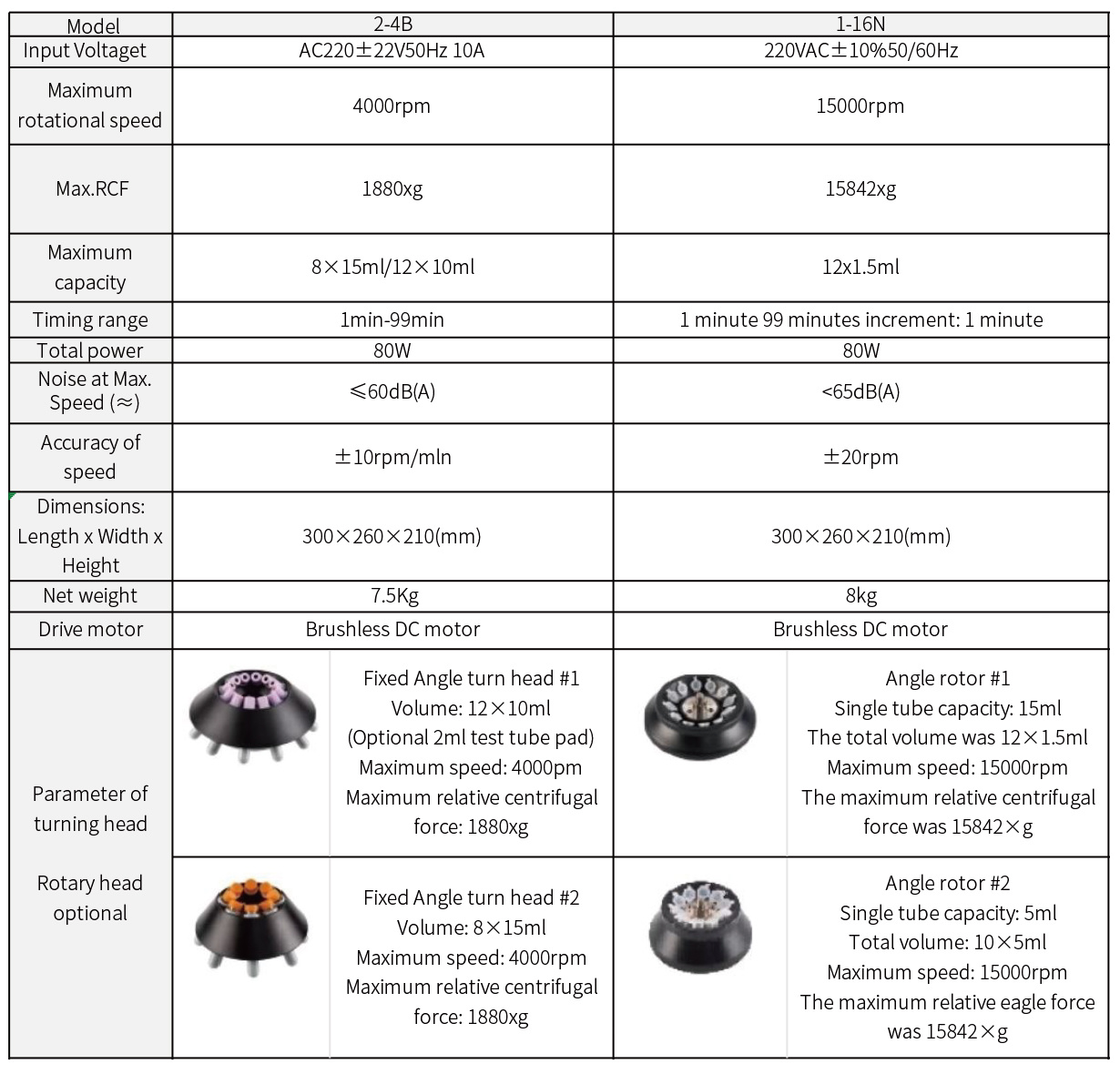

Model	2-4B	1-16N
Input Voltaget	AC220±22V50Hz 10A	220VAC±10%50/60Hz
Maximum rotational speed	4000rpm	15000rpm
Max.RCF	1880xg	15842xg
Maximum capacity	8×15ml/12×10ml	12x1.5ml
Timing range	1min-99min	1 minute 99 minutes increment:1 minute
Total power	80W	80W
Noise at Max. Speed(≈)	≤60dB(A)	<65dB(A)
Accuracy of speed	±10rpm/mln	±20rpm
Dimensions: Length ×Width x Height	300×260×210(mm)	300×260×210(mm)
Net weight	7.5Kg	8kg
Drive motor	Brushless DC motor	Brushless DC motor
Parameter of turning head Rotary head optional	Fixed Angle turn head#1 Volume:12×10ml (Optional 2ml test tube pad) Maximum speed:4000pm Maximum relative centrifugal force:1880xg	Angle rotor#1 Single tube capacity:15ml The total volume was 12×1.5ml Maximum speed:15000rpm The maximum relative centrifugal force was 15842×g
Parameter of turning head Rotary head optional	Fixed Angle turn head#2 Volume:8×15ml Maximum speed:4000rpm Maximum relative centrifugal force:1880xg	Angle rotor#2 Single tube capacity:5ml Total volume:10×5ml Maximum speed:15000rpm The maximum relative eagle force was 15842×g
