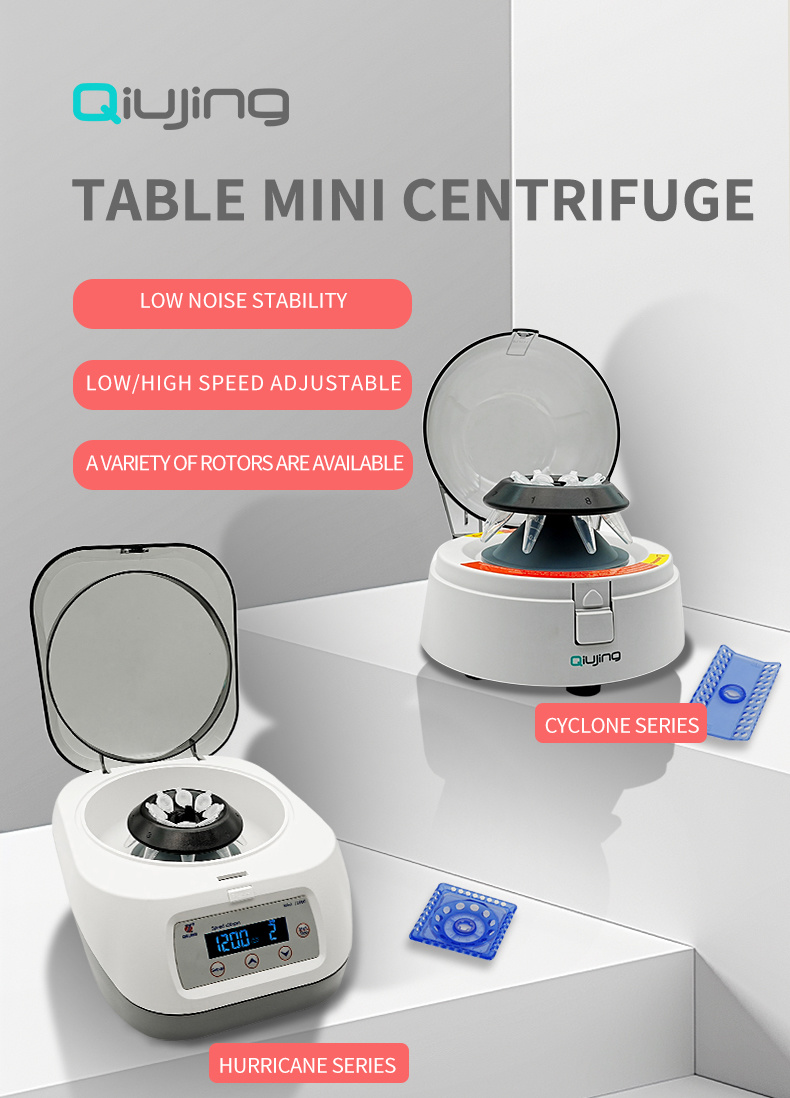

Cyclone Series Mini Centrifuge(C70)

Product model:

Centrifuge Series

MESSAGE

product details

Adopts an advanced and reliable PI high-frequency wide-range power control solution, compatible with power grids worldwide. Through 16-bit MCU PWM speed regulation, it enables more precise control of voltage, current, speed, and effective centrifugation time, ensuring extended motor life and elimination of electromagnetic noise even under harsh operating conditions.

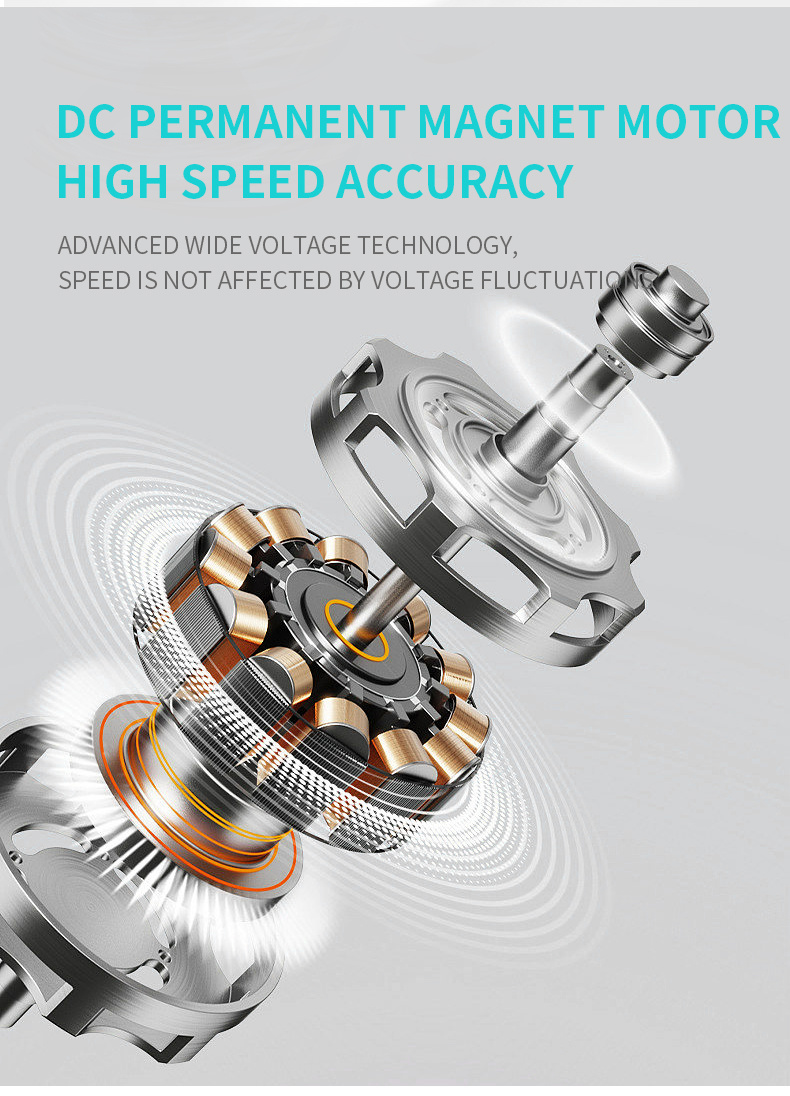

Reliable and durable DC permanent magnet motor with a wider speed range of 1000–7000 rpm or 1000–12000 rpm, accuracy of ±5%, speed step increment of 500 rpm, and effective centrifugation time range of 1-99 minutes or 1-59 seconds.

Faster acceleration/deceleration rates to complete experiments in a shorter time.

High-strength main unit and rotor materials resist various chemical corrosions, and the rotor features high-temperature sterilization capability.

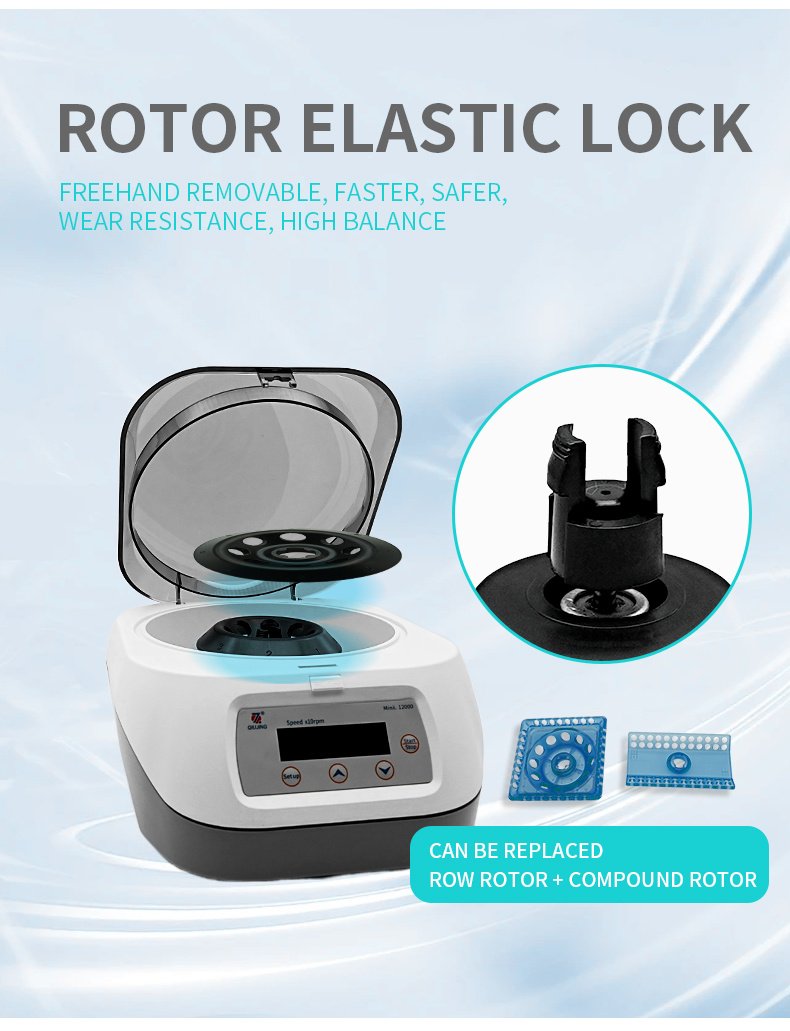

Unique snap-in rotor mounting design allows easy rotor replacement without any tools, making it faster and more convenient for lab personnel to change rotors.

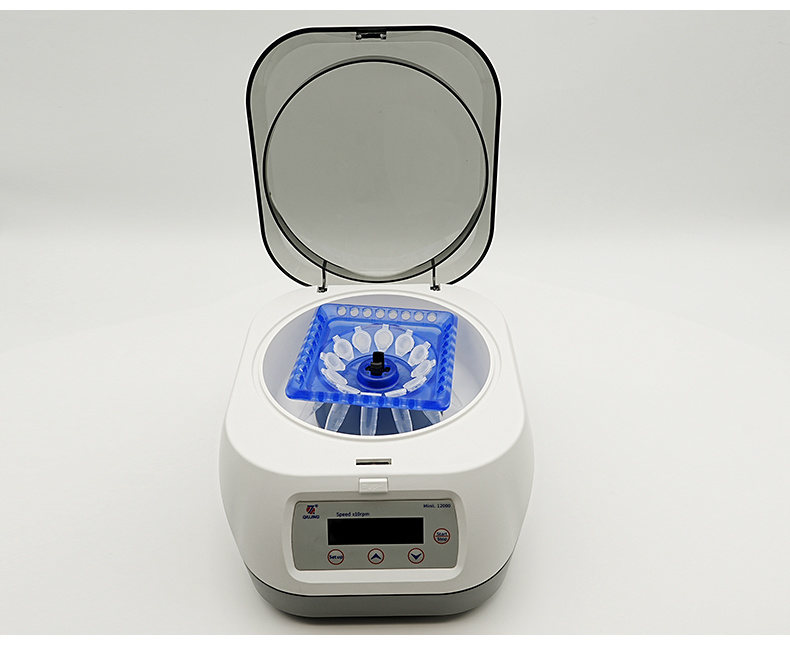

Innovative combined tube rotor accommodates multiple tube types, meeting basic experimental needs without rotor replacement.

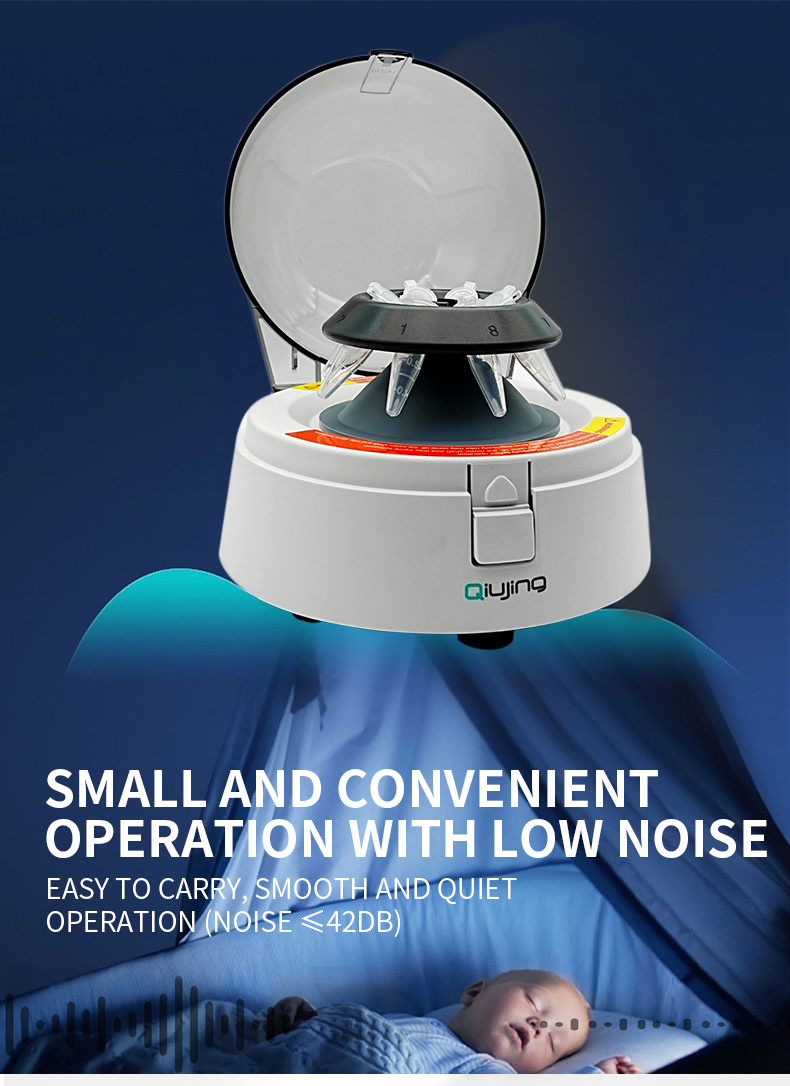

Rubber damping for smoother operation; the rotating chamber has a 360° arc shape with no sharp corners, low air resistance, low temperature rise, and ultra-low noise, with overall machine noise <60dB.

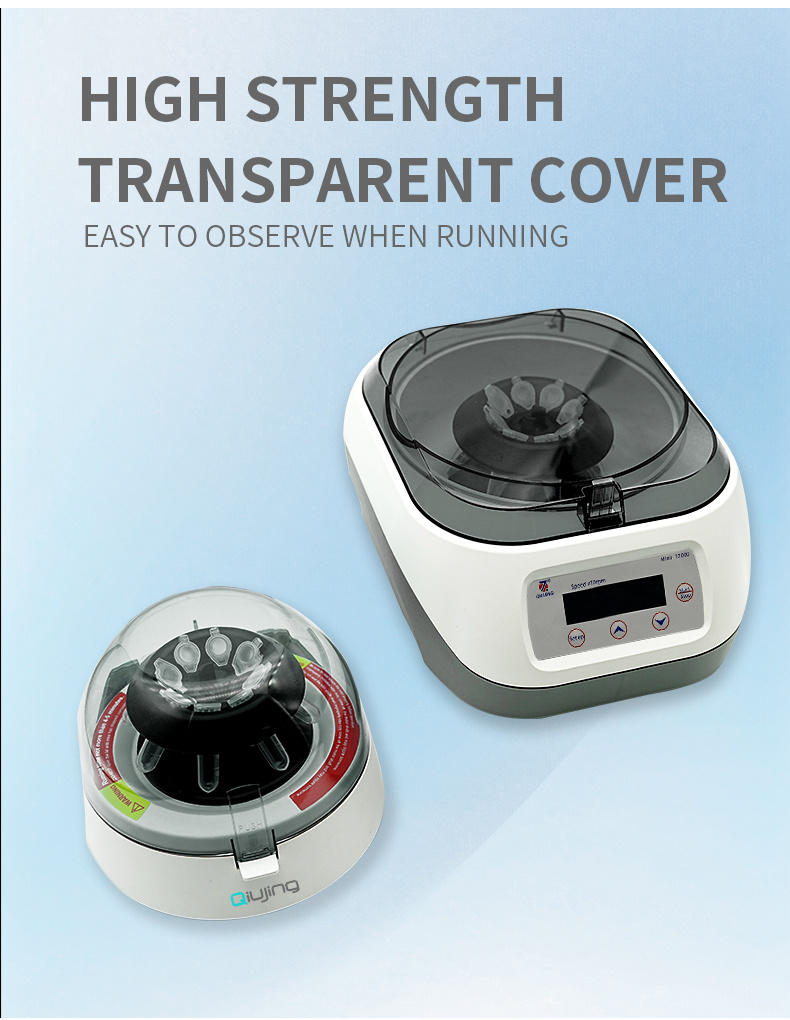

Lid protection ensures safe operation; when the run finishes, an error occurs, or imbalance is detected, an audible signal is given, the operation stops, and the LCD displays a result code.

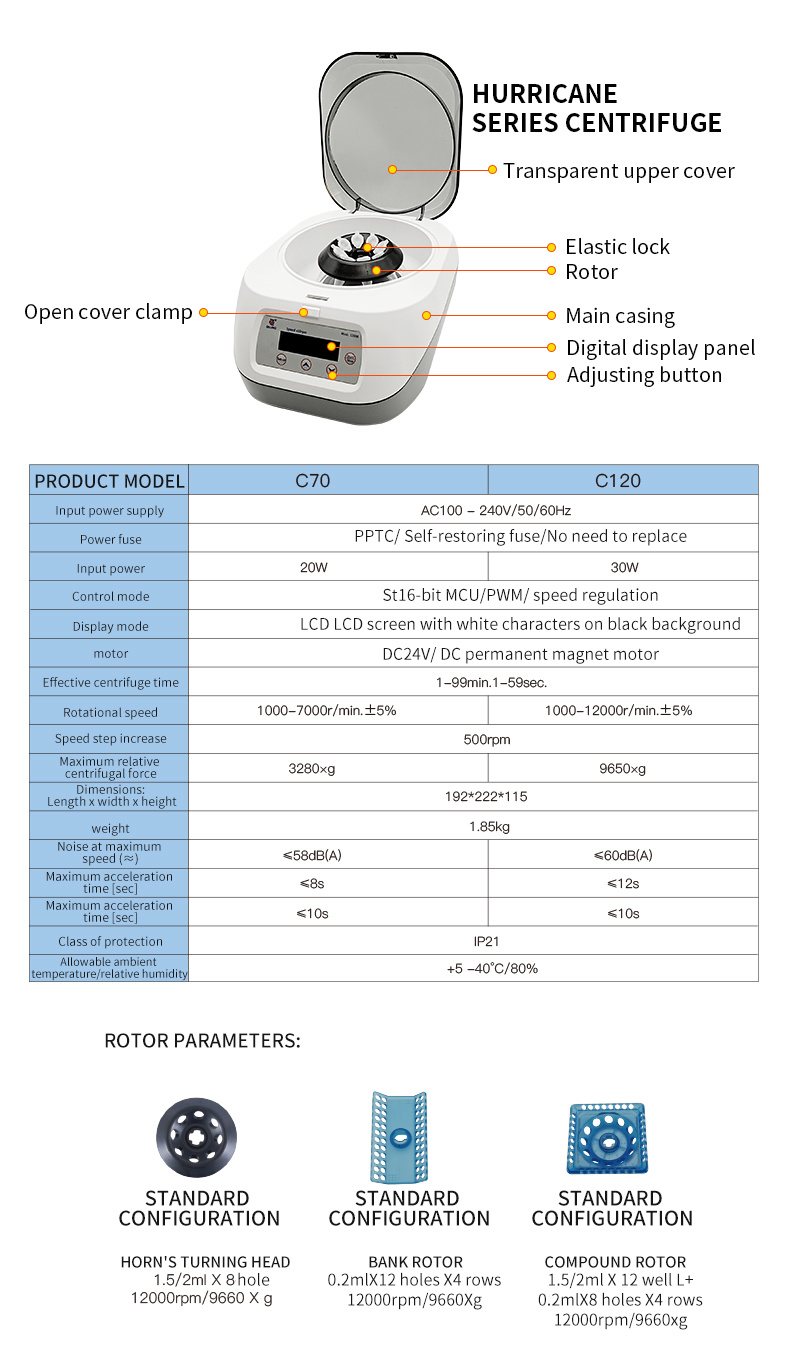

Parameter	C70	C120
Input Power Supply	AC100-240V/50/60Hz
Power Fuse	PPTC / self-resetting fuse / no replacement needed
Input Power	20W	30W
Control Mode	ST16-bit MCU/PWM/speed regulation
Display Type	Black background white text color LCD
Motor	DC24V / DC permanent magnet motor
Effective Centrifugation Time	1-99min / 1-59sec
Speed	1000-7000rpm ±5%	1000-12000rpm ±5%
Speed Step Increment	500rpm
Maximum Relative Centrifugal Force	3286Xg	9650Xg
Dimensions (L×W×H)	192mm × 222mm × 115mm
Weight	1.85Kg
Noise at Maximum Speed	≤58dB(A)	≤60dB(A)
Minimum Acceleration Time	≤8s	≤12s
Minimum Deceleration Time	≤10s
Protection Class	IP21
Allowable Ambient Temperature / Relative Humidity	+5-40℃ / 80%
Interference Suppression Standard	EN61010-1, EN61010-2, EN61326-1, EN61010-3-2/A2
