Serene Series Micro Mini High Speed Refrigerated Centrifuge (s165)

Product model:

Centrifuge Series

MESSAGE

product details

S165 is widely used in molecular biology, molecular chemistry and PCR laboratory.
It can be fitted with a variety of capacity rotary heads and is cost -effective.

Unique patented cast nylon (NCP) material rotor, ultra-light, high strength, slow heat
transfer, corrosion resistance strong corrosion, fast lifting speed. Patent number: ZL20 152066 1675.0

The surface of the machine adopts fine sand spraying process, the implementation standard IS 0900 1 | standard. the who machine is made of high-strength steel by asingle by asingle stamping and corrosion -resistant rotary head to prevent the risk of burst.

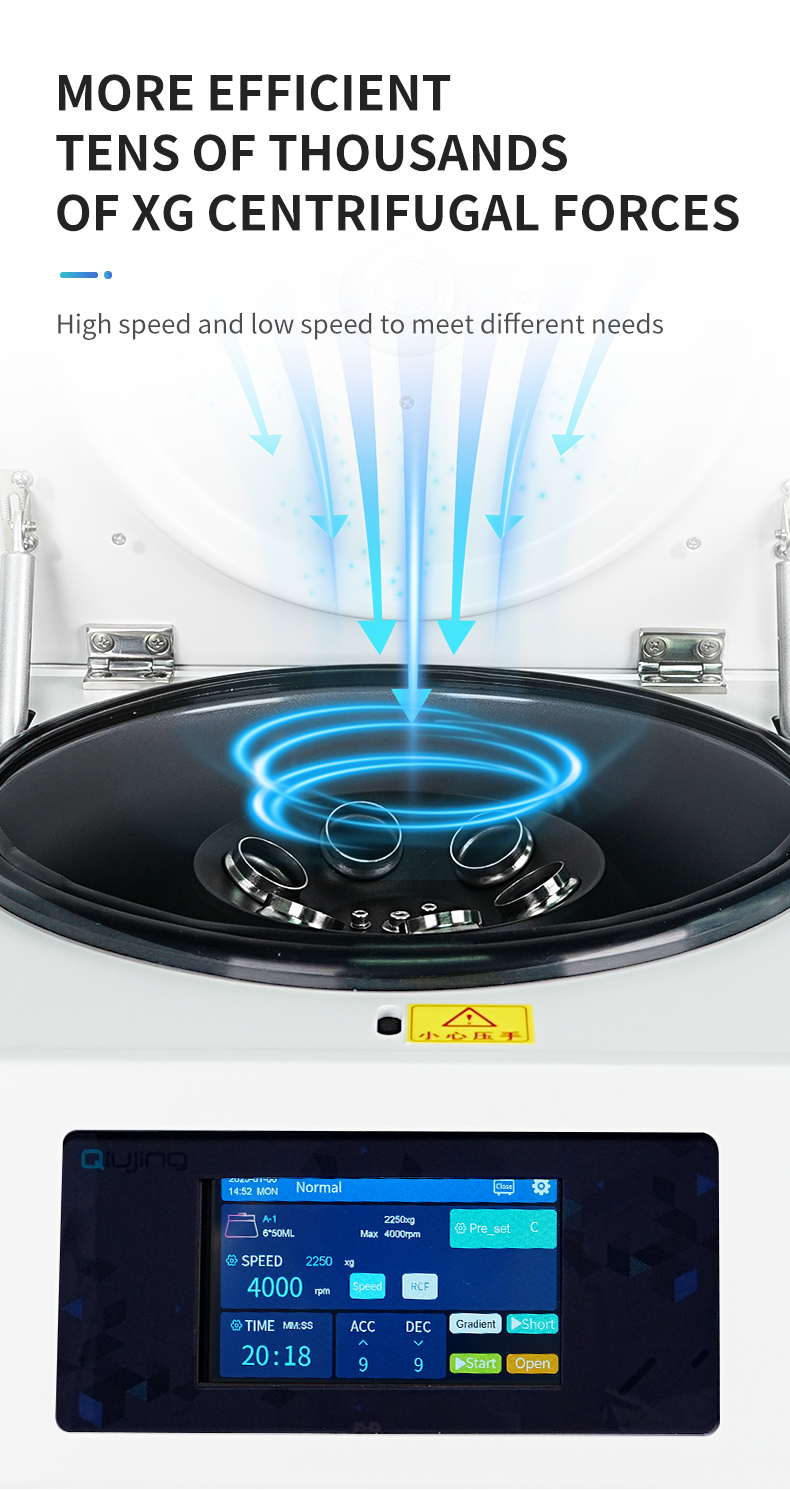

Small body and 10 s lift and drop speed to meet the user's efficient separation needs.
according to experimental requirements it can store 10 groups of applications, allowing experimenter to start with one clode.

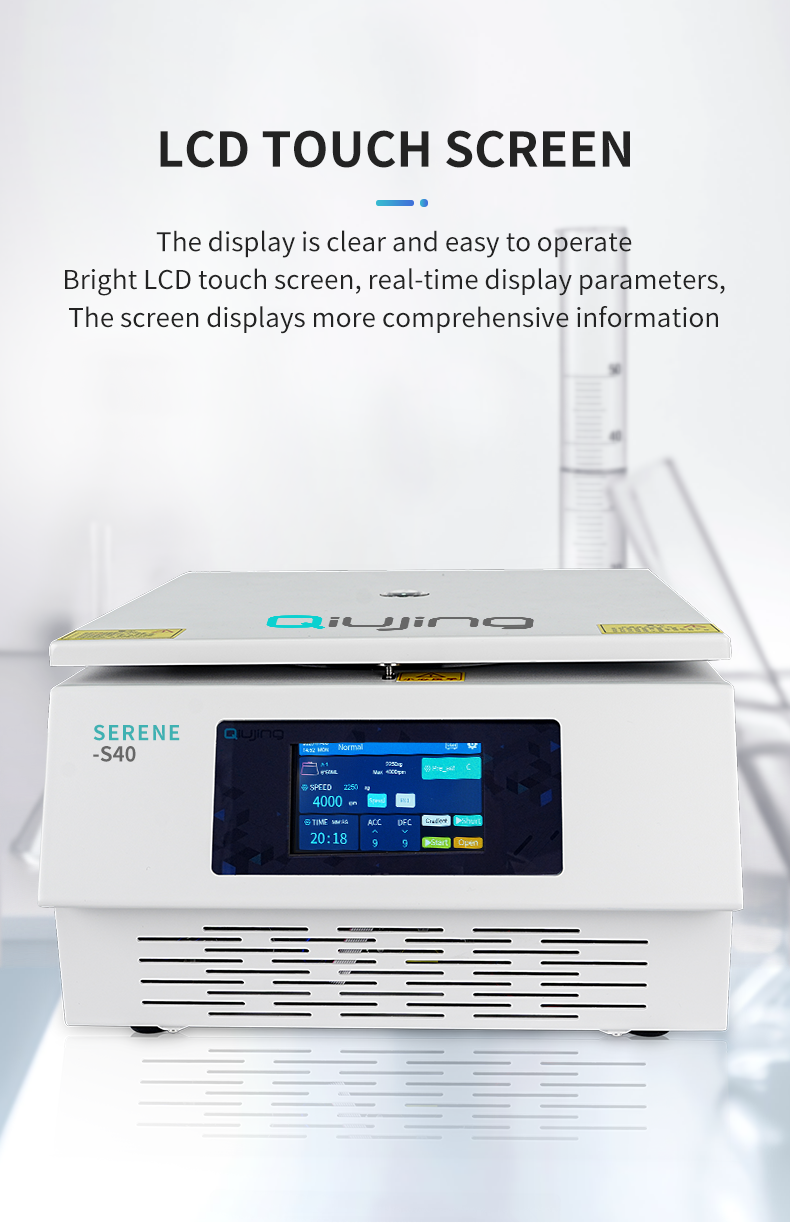

5 inch touch screen operation, centrifugal force can be set accuracy 1xg, speed accuracy 1r pm, time can be refined to 1 s, the large screen displays the speed, centrifugal force, time, temperature, and addition and subtraction parameters parameters can be changed in the row without stopping.

Host Parameter
Product Model	S165（Frozen type）
Max. Speed	16500rpm
Max.RCF	21890xg
Maximum Capacity	18×5ml
Speed Accuracy	±10rpm/min
Timing Range	1s-99min59s/99h59min
Temperature Setting Range	-20℃ - 40℃
Temperature Accuracy	±1.0℃
Mode of Operation	Touch panel
Overall Power	800W
Machine Noise	≤52dB(A)
Support Power Supply	AC220±22V 50Hz 10A
Dimensions: Length x Width x Height	520×320×230（mm）
Net Weight	35KG

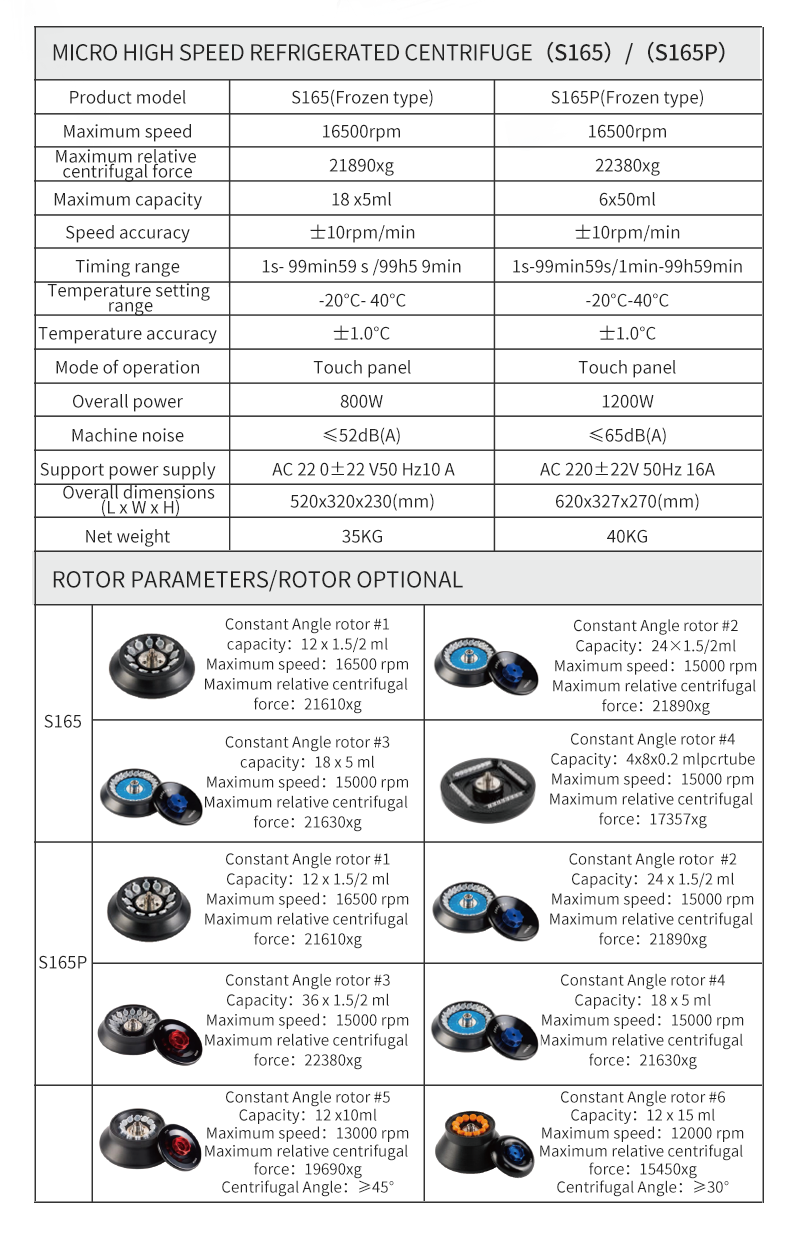

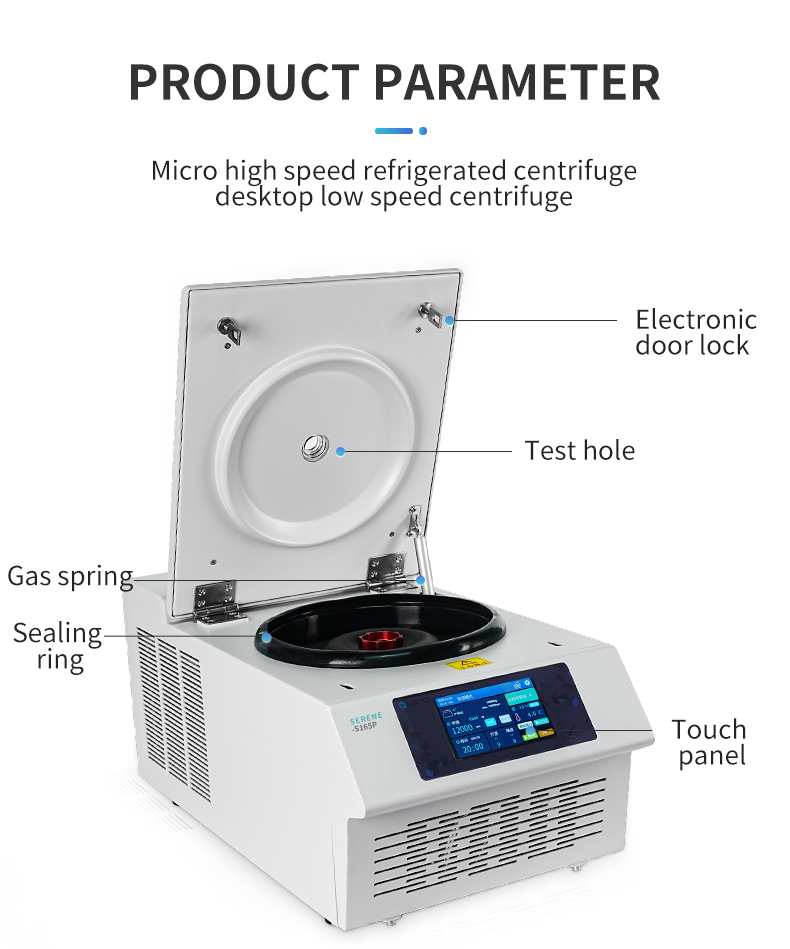

MICRO HIGH SPEED REFRIGERATED CENTRIFUGE (S165) / (S165P)

Product model	S165(Frozen type)	S165P(Frozen type)
Maximum speed	16500rpm	16500rpm
Maximum relative centrifugal force	21890xg	22380xg
Maximum capacity	18 x5ml	6x50ml
Speed accuracy	±10rpm/min	±10rpm/min
Timing range	1s- 99min59s /99h59min	1s-99min59s/1min-99h59min
Temperature setting range	-20°C - 40°C	-20°C - 40°C
Temperature accuracy	±1.0°C	±1.0°C
Mode of operation	Touch panel	Touch panel
Overall power	800W	1200W
Machine noise	≤52dB(A)	≤65dB(A)
Support power supply	AC 220±22V 50Hz10A	AC 220±22V 50Hz16A
Overall dimensions (L x W x H)	520x320x230(mm)	620x327x270(mm)
Net weight	35KG	40KG

ROTOR PARAMETERS/ROTOR OPTIONAL

S165

Rotor Type	Parameters
Constant Angle rotor #1	Capacity: 12 x 1.5/2 ml Maximum speed: 16500 rpm Maximum relative centrifugal force: 21610xg
Constant Angle rotor #2	Capacity: 24×1.5/2ml Maximum speed: 15000 rpm Maximum relative centrifugal force: 21890xg
Constant Angle rotor #3	Capacity: 18 x 5 ml Maximum speed: 15000 rpm Maximum relative centrifugal force: 21630xg
Constant Angle rotor #4	Capacity: 4x8x0.2 mlpcrtube Maximum speed: 15000 rpm Maximum relative centrifugal force: 17357xg

S165P

Rotor Type	Parameters
Constant Angle rotor #1	Capacity: 12 x 1.5/2 ml Maximum speed: 16500 rpm Maximum relative centrifugal force: 21610xg
Constant Angle rotor #2	Capacity: 24 x 1.5/2 ml Maximum speed: 15000 rpm Maximum relative centrifugal force: 21890xg
Constant Angle rotor #3	Capacity: 36 x 1.5/2 ml Maximum speed: 15000 rpm Maximum relative centrifugal force: 22380xg
Constant Angle rotor #4	Capacity: 18 x 5 ml Maximum speed: 15000 rpm Maximum relative centrifugal force: 21630xg
Constant Angle rotor #5	Capacity: 12 x10ml Maximum speed: 13000 rpm Maximum relative centrifugal force: 19690xg Centrifugal Angle: ≥45°
Constant Angle rotor #6	Capacity: 12 x 15 ml Maximum speed: 12000 rpm Maximum relative centrifugal force: 15450xg Centrifugal Angle: ≥30°

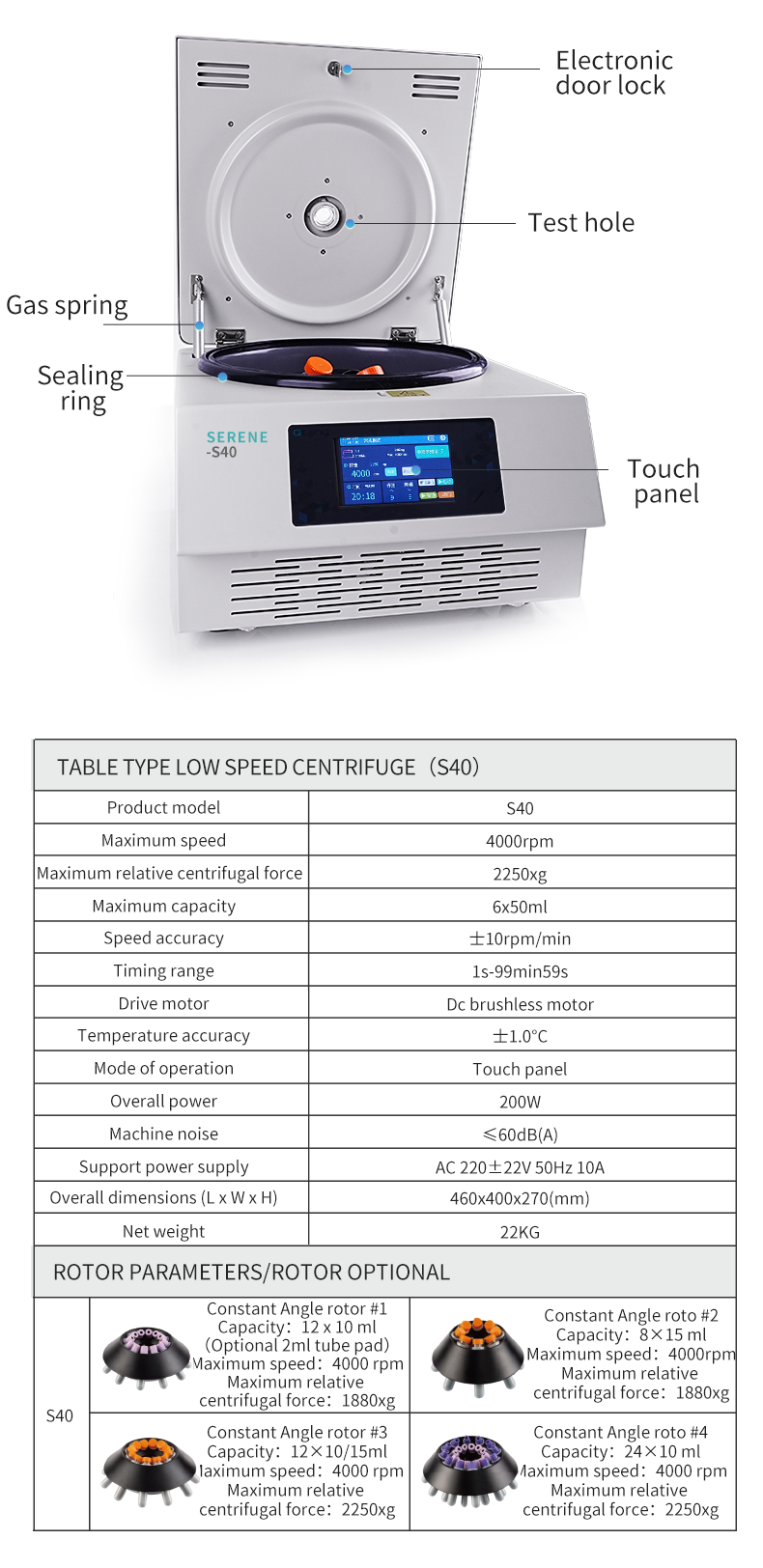

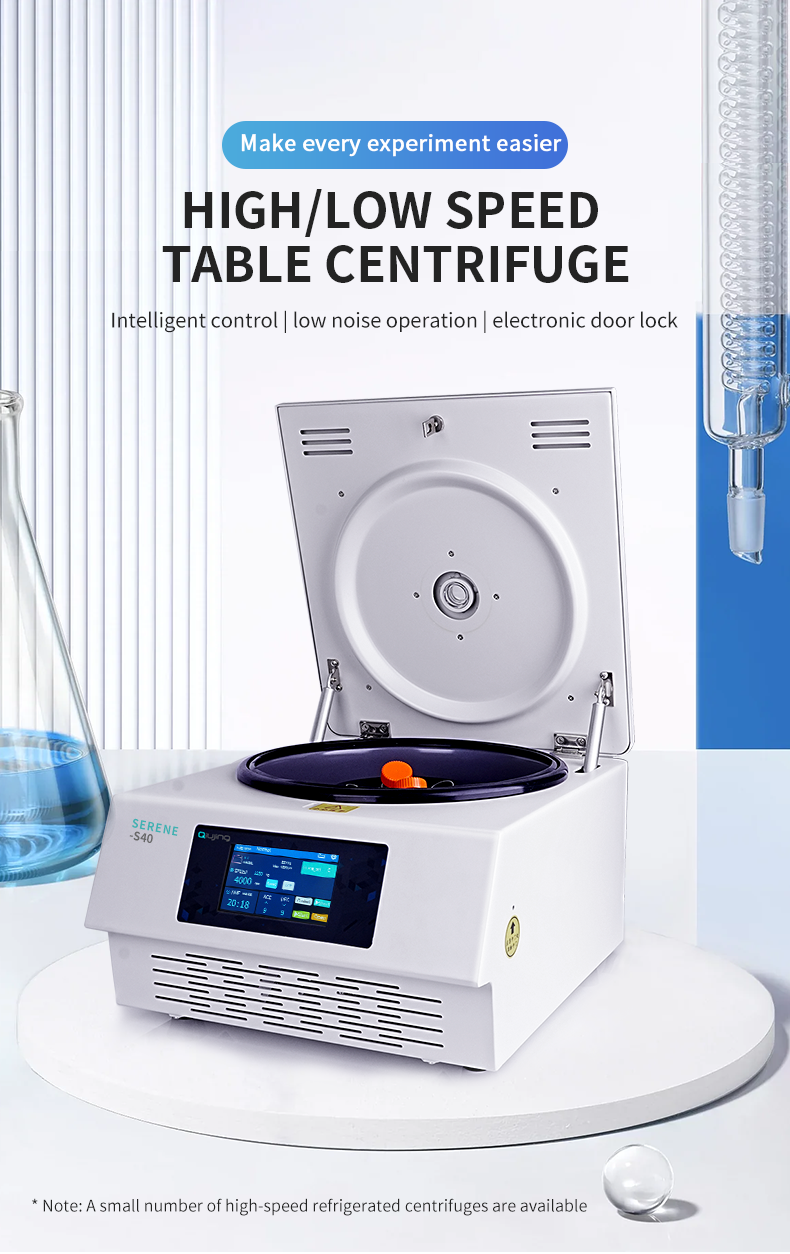

TABLE TYPE LOW SPEED CENTRIFUGE (S40)

Parameter	Detail
Product model	S40
Maximum speed	4000rpm
Maximum relative centrifugal force	2250xg
Maximum capacity	6x50ml
Speed accuracy	±10rpm/min
Timing range	1s - 99min59s

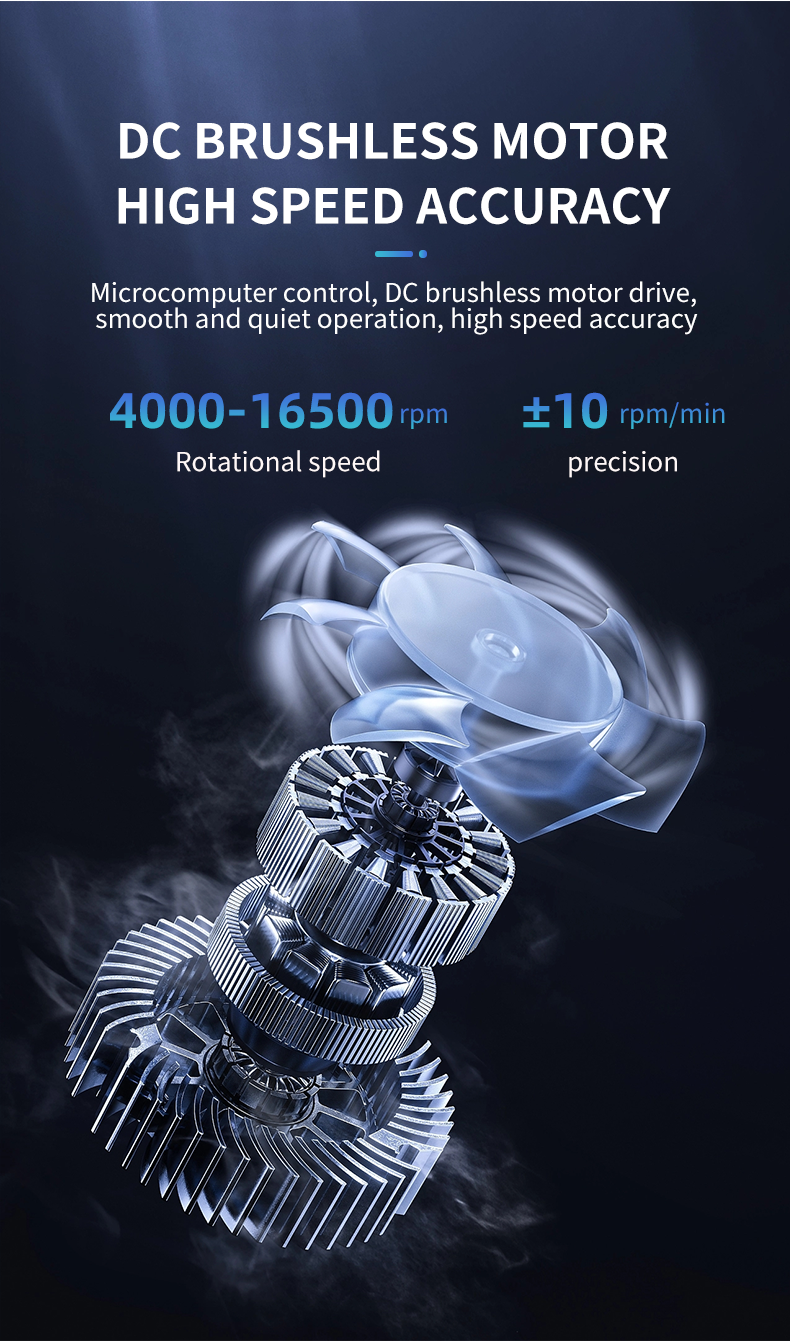

Drive motor	Dc brushless motor
Temperature accuracy	±1.0°C
Mode of operation	Touch panel
Overall power	200W
Machine noise	≤60dB(A)
Support power supply	AC 220±22V 50Hz 10A
Overall dimensions (L x W x H)	460x400x270(mm)
Net weight	22KG

ROTOR PARAMETERS/ROTOR OPTIONAL

S40

Rotor type	Capacity and performance
Constant Angle rotor #1	Capacity: 12 x 10 ml (Optional 2ml tube pad) Maximum speed: 4000 rpm Maximum relative centrifugal force: 1880xg
Constant Angle rotor #2	Capacity: 8 x 15 ml Maximum speed: 4000rpm Maximum relative centrifugal force: 1880xg
Constant Angle rotor #3	Capacity: 12 x 10/15ml Maximum speed: 4000 rpm Maximum relative centrifugal force: 2250xg
Constant Angle rotor #4	Capacity: 24 x 10 ml Maximum speed: 4000 rpm Maximum relative centrifugal force: 2250xg
