Serene Series Micro High Speed Refrigerated Centrifuge (s165p)
Product model:
Centrifuge Series
product details
S165P is widely used in plasmid extraction, protein purification, bacterial isolation and other fields it can be fitted with a variety of capacity rotary heads and is cost-effective. the surface of the machine adopts fine sand spray process, the implementation standard is iSO 9001 | standard.
Unique patented cast nylon (NCP) material rotor, ultra-light, high strength, slow heat transfer, corrosion resistance strong corrosion, fast lifting speed. patent No. : ZL 20152 0661675.0.
The whole machine adopts high strength steel stamping molding, rotor corrosion resistance to prevent the risk of burst. with turn head automatic recognition function to prevent users from choosing the wrong head to bring security risks.
The use of environmentally friendly refrigerant, the highest speed of the chamber temperature can still be stable at 4 ℃; Rapid precooling function from room temperature 25 ° C to 4 ° C in 6 minutes.
5 inch touch screen operation, centrifugal force can be set accuracy 1xg, speed accuracy 1r pm, time can be accurate to 1s, parameters such as speed, centrifugal force time, temperature, and addition and subtraction can be changed during operation without stopping.

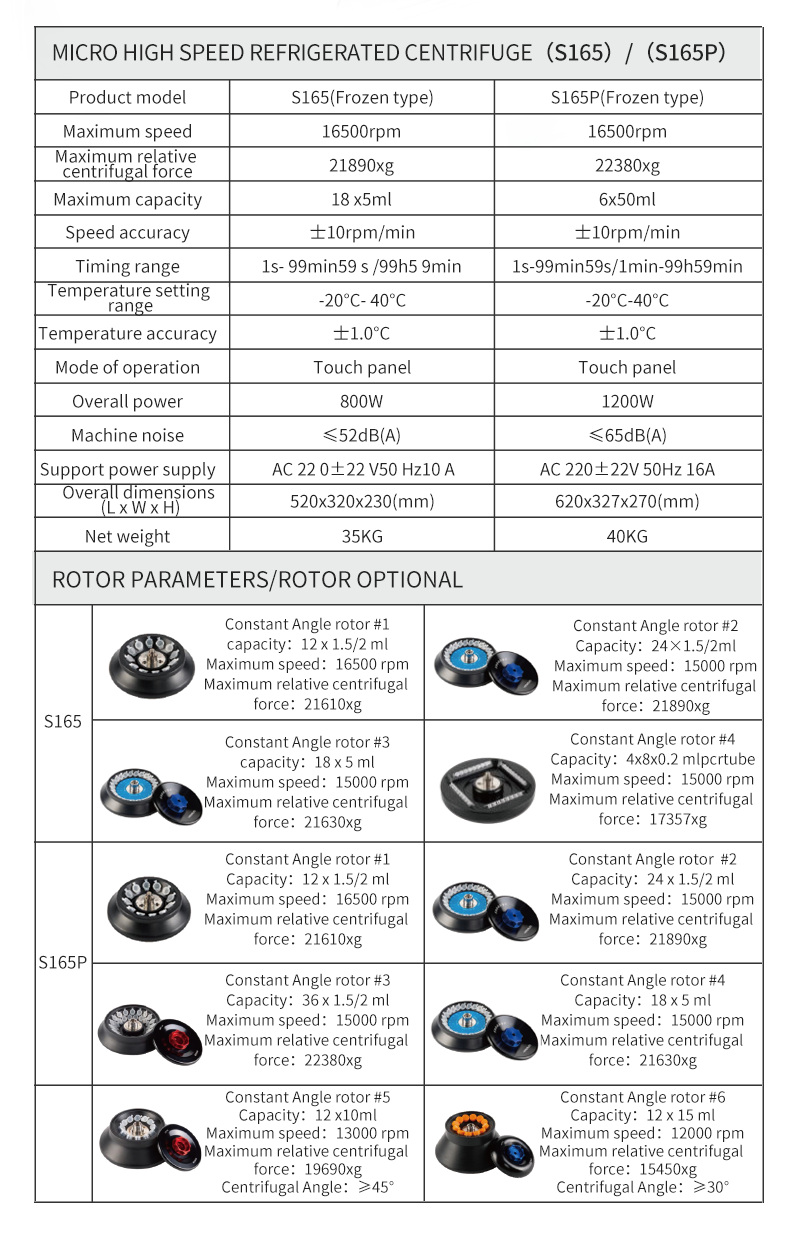

MICRO HIGH SPEED REFRIGERATED CENTRIFUGE (S165) / (S165P)
| Product model | S165(Frozen type) | S165P(Frozen type) |
|---|---|---|
| Maximum speed | 16500rpm | 16500rpm |
| Maximum relative centrifugal force | 21890xg | 22380xg |
| Maximum capacity | 18 x5ml | 6x50ml |
| Speed accuracy | ±10rpm/min | ±10rpm/min |
| Timing range | 1s- 99min59s /99h59min | 1s-99min59s/1min-99h59min |
| Temperature setting range | -20°C - 40°C | -20°C - 40°C |
| Temperature accuracy | ±1.0°C | ±1.0°C |
| Mode of operation | Touch panel | Touch panel |
| Overall power | 800W | 1200W |
| Machine noise | ≤52dB(A) | ≤65dB(A) |
| Support power supply | AC 220±22V 50Hz10A | AC 220±22V 50Hz16A |
| Overall dimensions (L x W x H) | 520x320x230(mm) | 620x327x270(mm) |
| Net weight | 35KG | 40KG |
ROTOR PARAMETERS/ROTOR OPTIONAL
S165
| Rotor type | Parameters |
|---|---|
| Constant Angle rotor #1 | Capacity: 12 x 1.5/2 ml Maximum speed: 16500 rpm Maximum relative centrifugal force: 21610xg |
| Constant Angle rotor #2 | Capacity: 24×1.5/2ml Maximum speed: 15000 rpm Maximum relative centrifugal force: 21890xg |
| Constant Angle rotor #3 | Capacity: 18 x 5 ml Maximum speed: 15000 rpm Maximum relative centrifugal force: 21630xg |
| Constant Angle rotor #4 | Capacity: 4x8x0.2 mlpcrtube Maximum speed: 15000 rpm Maximum relative centrifugal force: 17357xg |
S165P
| Rotor type | Parameters |
|---|---|
| Constant Angle rotor #1 | Capacity: 12 x 1.5/2 ml Maximum speed: 16500 rpm Maximum relative centrifugal force: 21610xg |
| Constant Angle rotor #2 | Capacity: 24 x 1.5/2 ml Maximum speed: 15000 rpm Maximum relative centrifugal force: 21890xg |
| Constant Angle rotor #3 | Capacity: 36 x 1.5/2 ml Maximum speed: 15000 rpm Maximum relative centrifugal force: 22380xg |
| Constant Angle rotor #4 | Capacity: 18 x 5 ml Maximum speed: 15000 rpm Maximum relative centrifugal force: 21630xg |
| Constant Angle rotor #5 | Capacity: 12 x10ml Maximum speed: 13000 rpm Maximum relative centrifugal force: 19690xg Centrifugal Angle: ≥45° |
| Constant Angle rotor #6 | Capacity: 12 x 15 ml Maximum speed: 12000 rpm Maximum relative centrifugal force: 15450xg Centrifugal Angle: ≥30° |

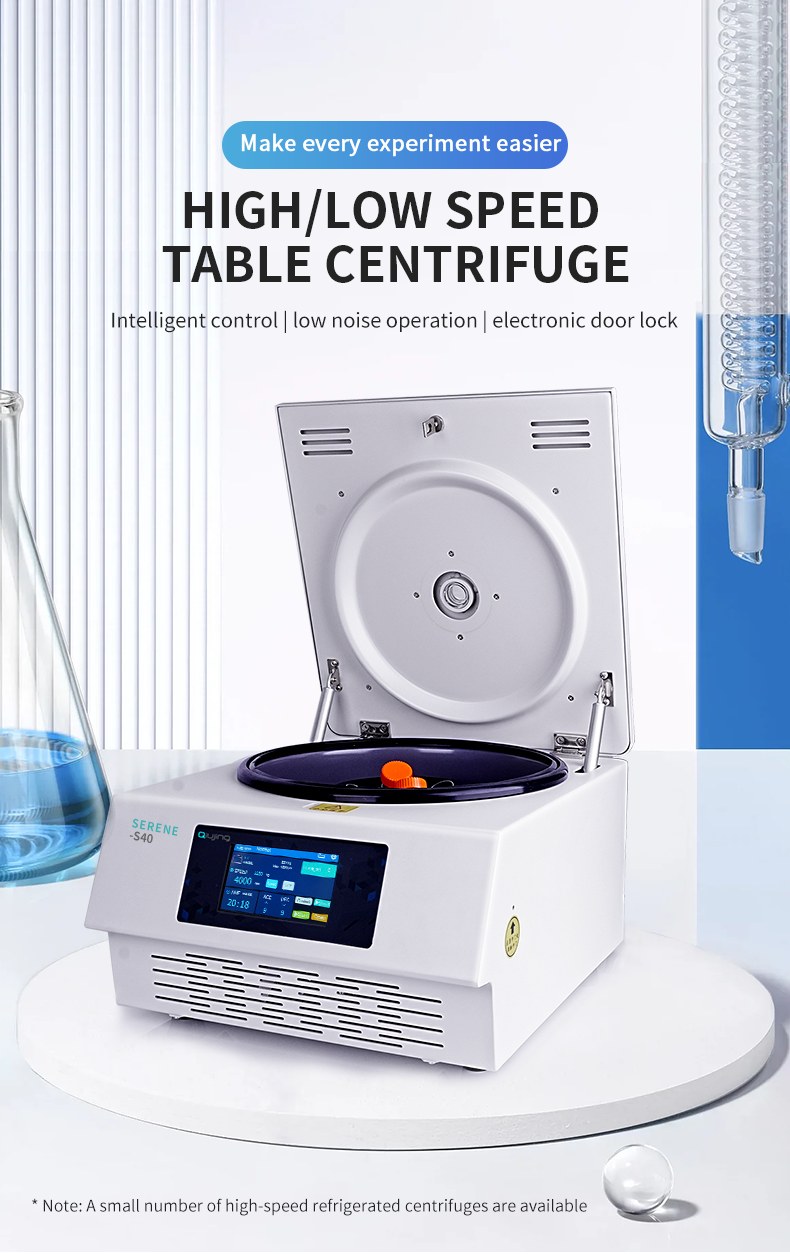

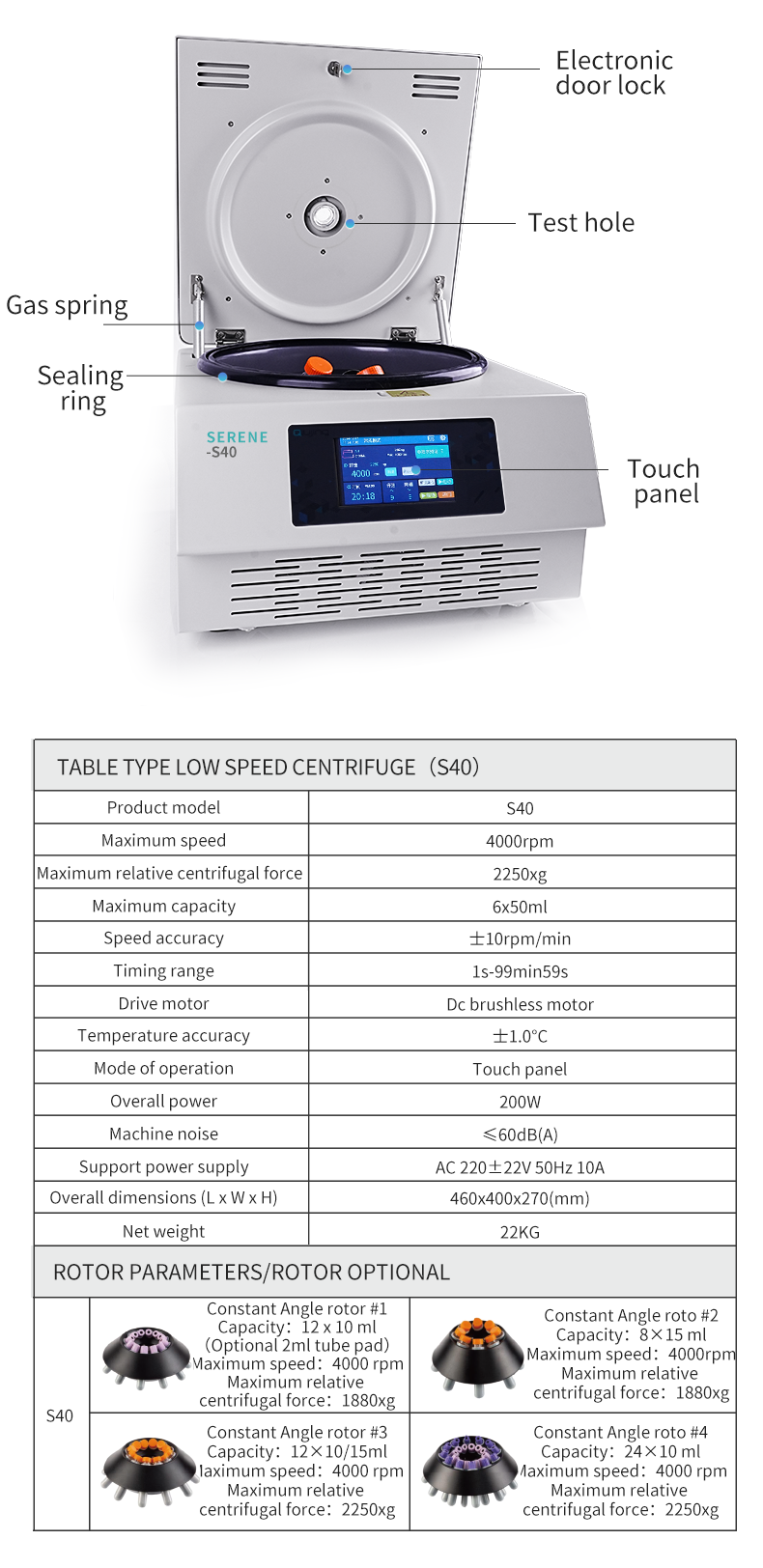

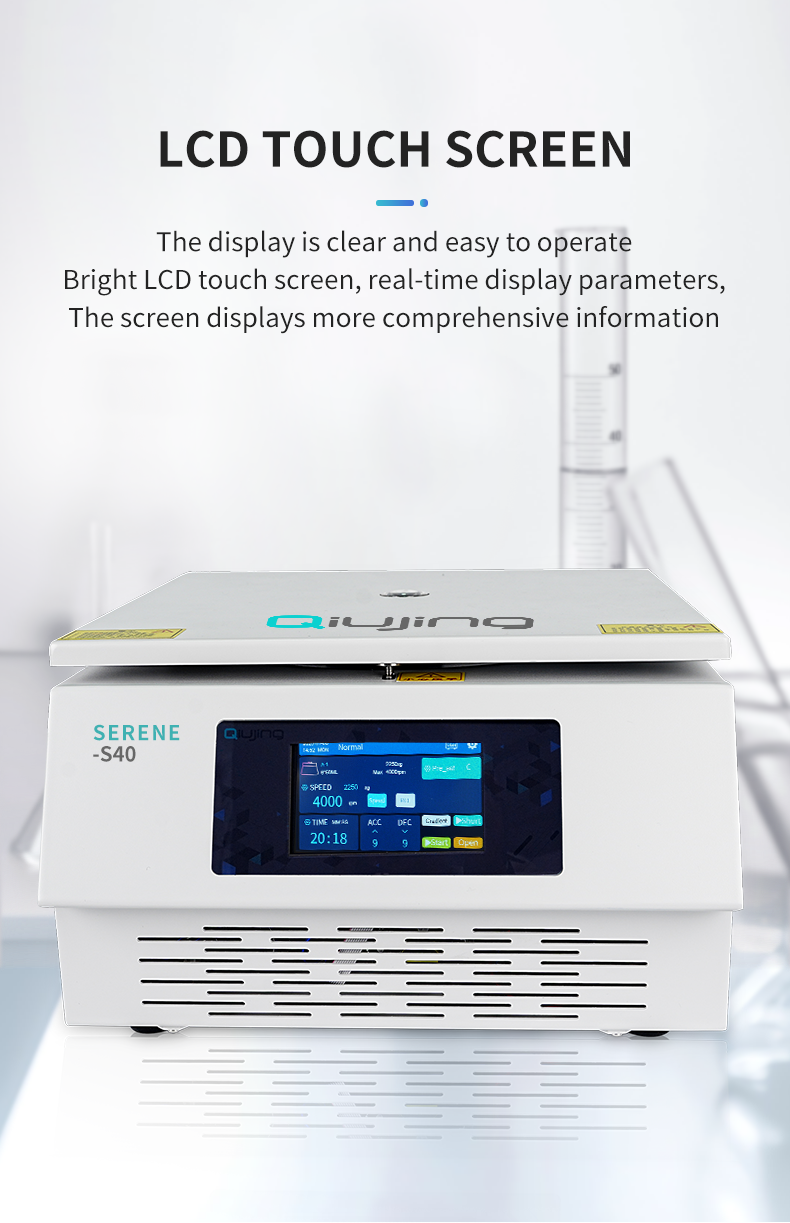

TABLE TYPE LOW SPEED CENTRIFUGE (S40)
| Parameter | Specification |
|---|---|
| Product model | S40 |
| Maximum speed | 4000rpm |
| Maximum relative centrifugal force | 2250xg |
| Maximum capacity | 6x50ml |
| Speed accuracy | ±10rpm/min |
| Timing range | 1s - 99min59s |

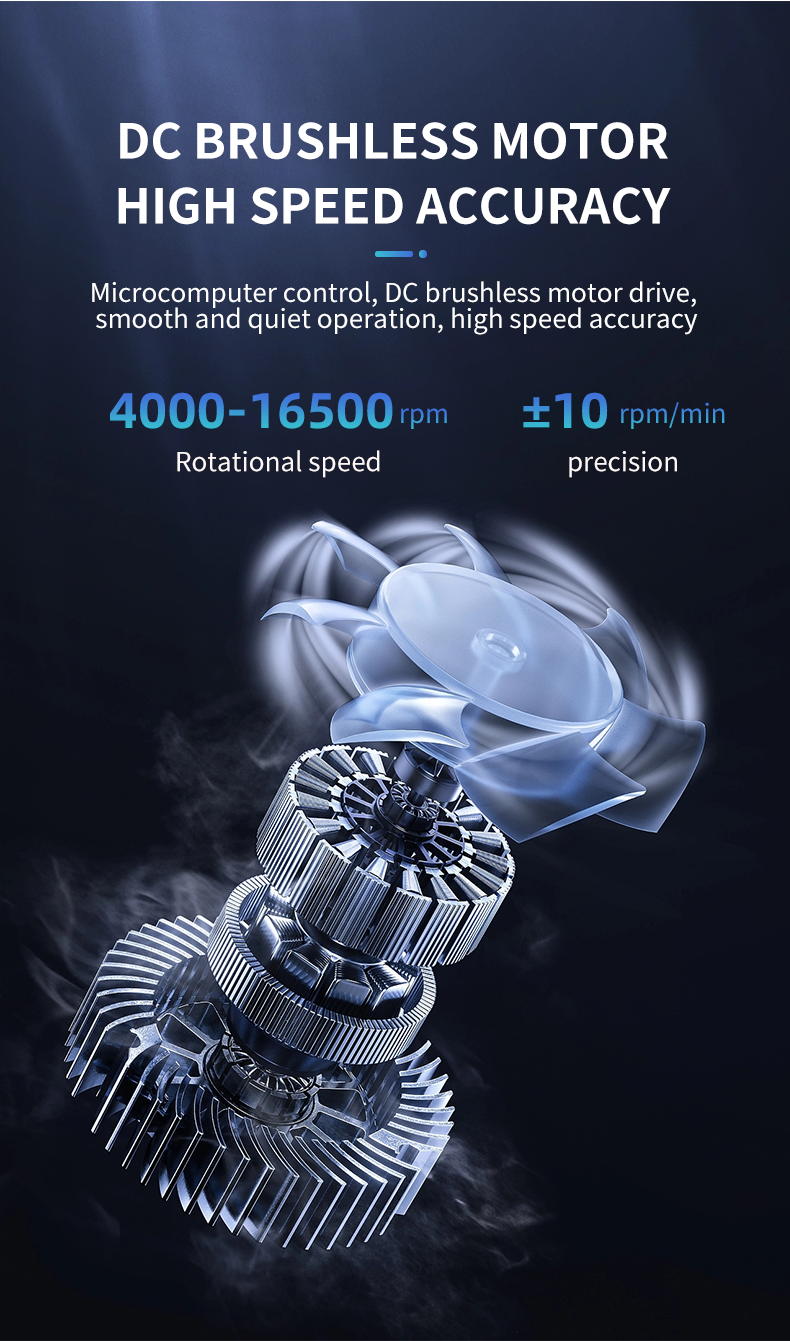

| Drive motor | Dc brushless motor |
| Temperature accuracy | ±1.0°C |
| Mode of operation | Touch panel |
| Overall power | 200W |
| Machine noise | ≤60dB(A) |
| Support power supply | AC 220±22V 50Hz 10A |
| Overall dimensions (L x W x H) | 460x400x270(mm) |
| Net weight | 22KG |
ROTOR PARAMETERS/ROTOR OPTIONAL
S40
| Rotor Type | Details |
|---|---|
| Constant Angle rotor #1 | Capacity: 12 x 10 ml (Optional 2ml tube pad) Maximum speed: 4000 rpm Maximum relative centrifugal force: 1880xg |
| Constant Angle rotor #2 | Capacity: 8 x 15 ml Maximum speed: 4000rpm Maximum relative centrifugal force: 1880xg |
| Constant Angle rotor #3 | Capacity: 12×10/15ml Maximum speed: 4000 rpm Maximum relative centrifugal force: 2250xg |
| Constant Angle rotor #4 | Capacity: 24×10 ml Maximum speed: 4000 rpm Maximum relative centrifugal force: 2250xg |
