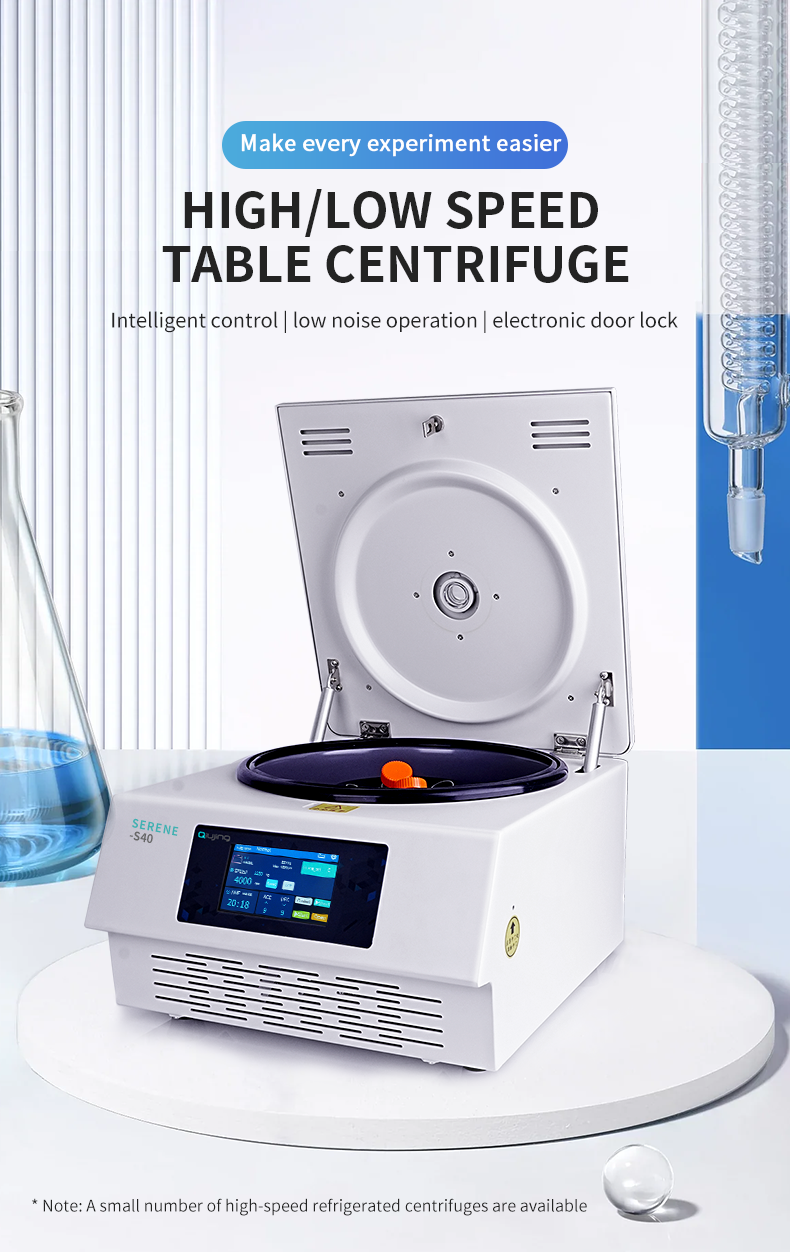

Serene Series Bench Top Low Speed Centrifuge (s40)

Product model:

Centrifuge Series

MESSAGE

product details

Small table centrifuge is designed to meet the needs of hospitals, blood banks, clinical medicine and biochemistry centrifuge designed for qualitative analysis of serum, plasma and urea in laboratory.

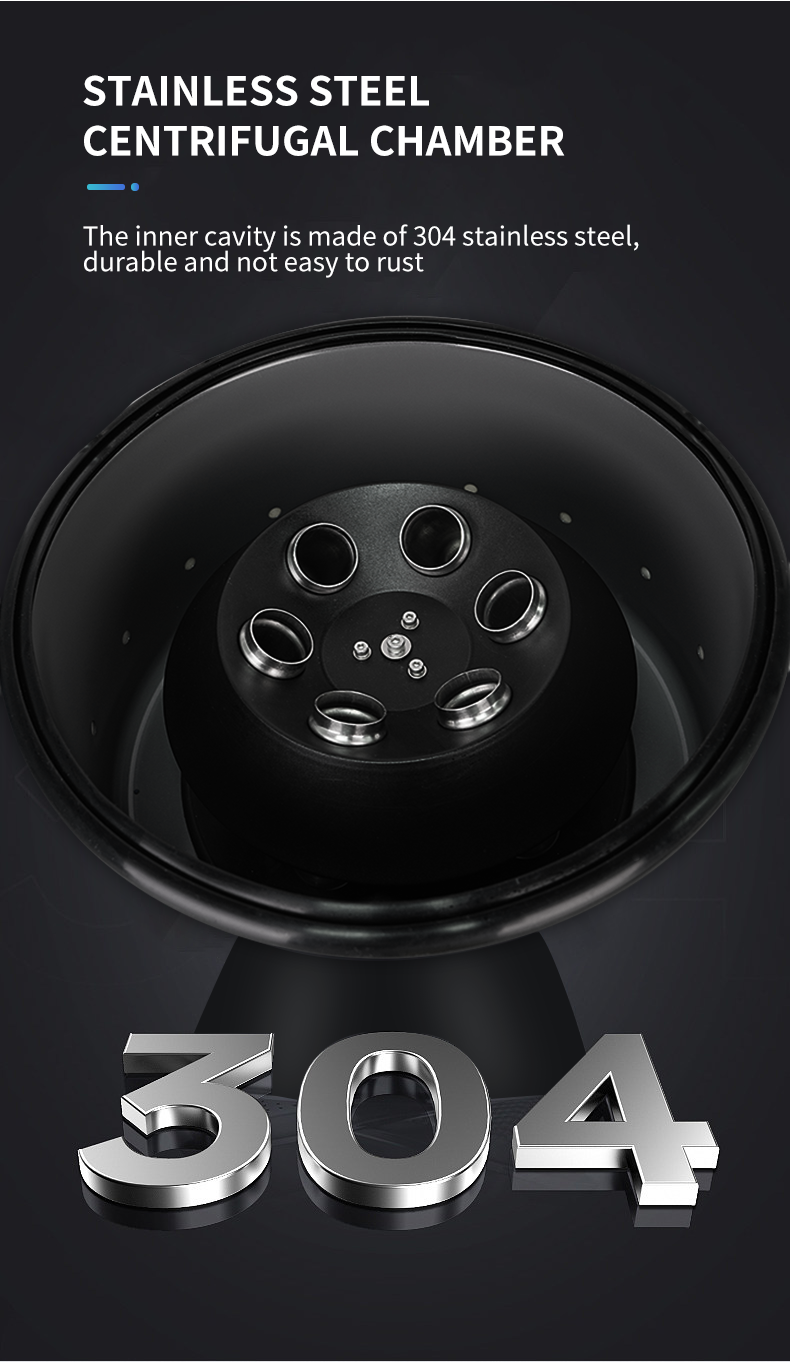

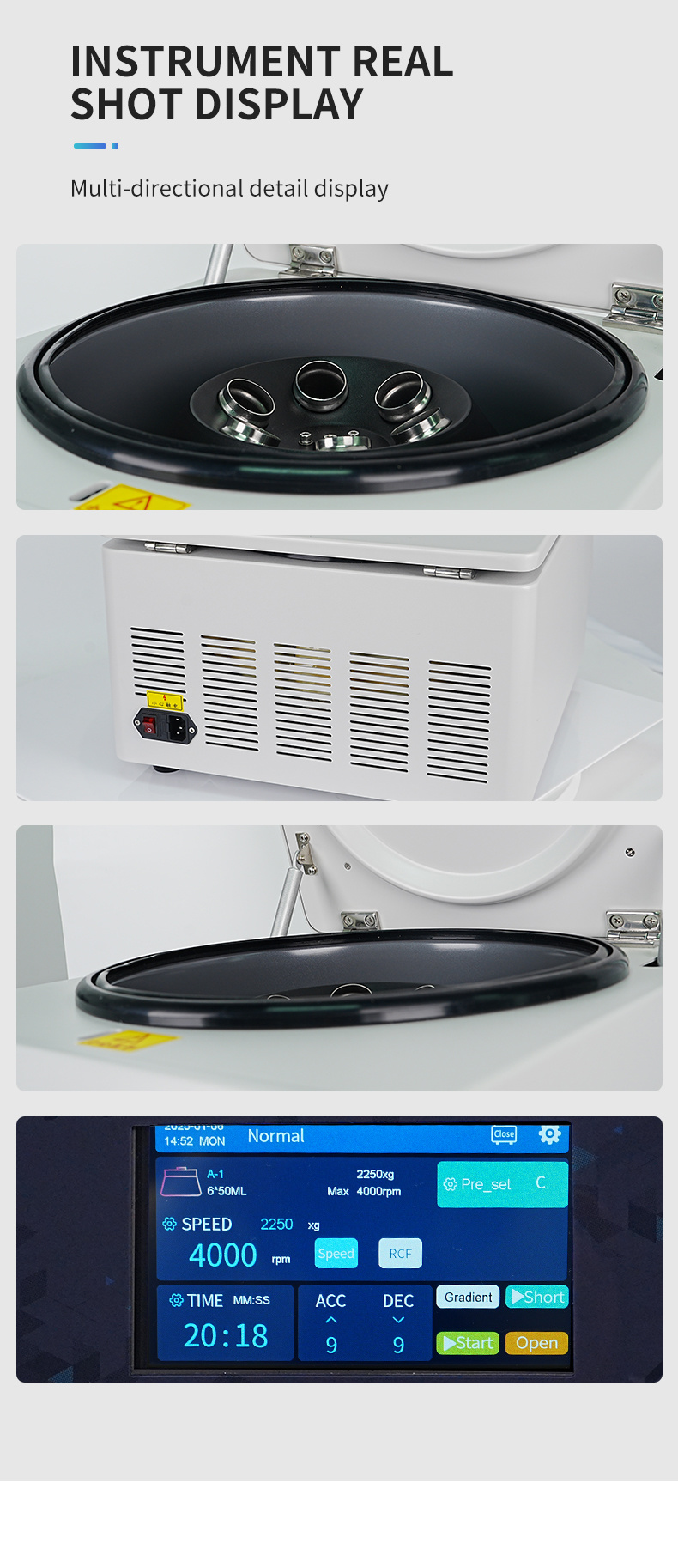

The stainless steel centrifugal chamber has high tensile strength and low wind resistance. It has differential centrifugation gradient centrifugation，spot centrifugation and timed centrifugation.

the equilateral triangle wag fixes the door cover with force，which is safer during the operation of the centrifuge. Equipped with overspeed overtemperature, imbalance and door cover protection to protect personal safety and instrument safety.

The emergency cover opening is provided with a protective head on the side of the instrument, and there is no cable switch, which is convenient to open the cover and loosen the cover in emergency avoid security risks caused by misoperation.

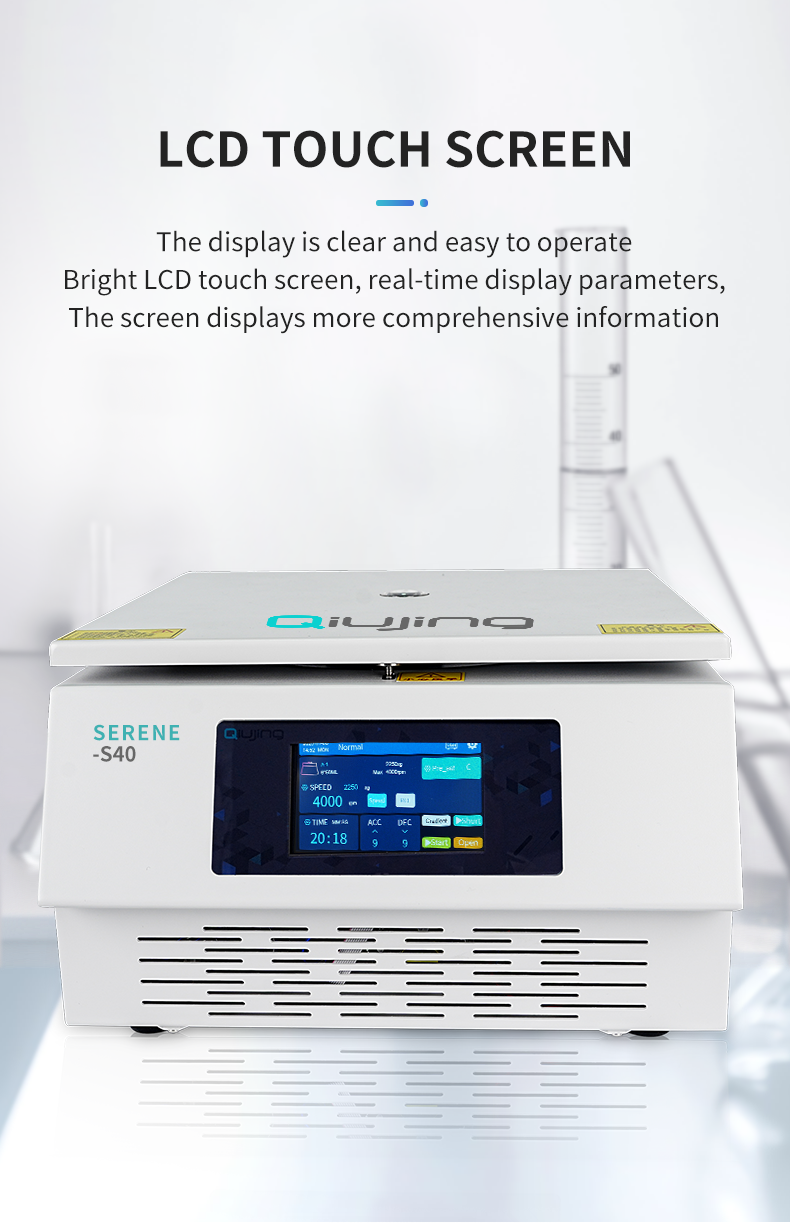

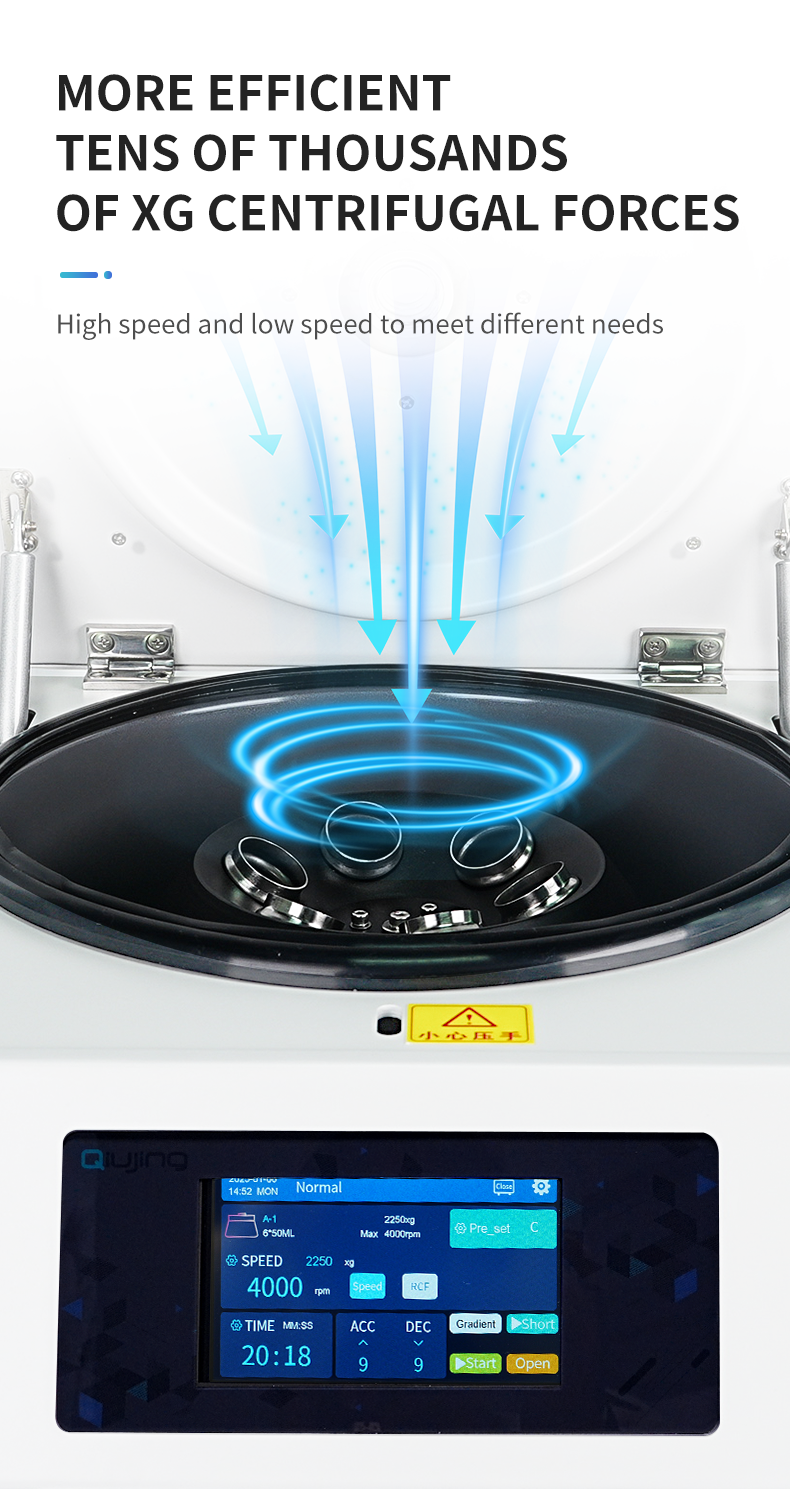

5 inch touch screen operation, simple and convenient. The centrifugal force parameters can be set accurately to 1xg, and the speed can be accurate to 1rpm the time can be accurate to 1s. Large screen display speed, centrifugal force, time, temperature, plus or minus ,etc parameters can be changed during operation without stopping.

Host Parameter
Product Model	S40
Max. Speed	4000rpm
Max.RCF	2250xg
Maximum Capacity	6×50ml
Timing Range	1s-99min59s
Input Voltage	AC220±22V 50Hz 10A
Input power	200W
Speed Accuracy	±10rpm/min
Noise at Max.Speed(≈）	≤60dB(A)
Net Weight	22KG
Dimensions: Length x Width x Height	460×400×270（mm）

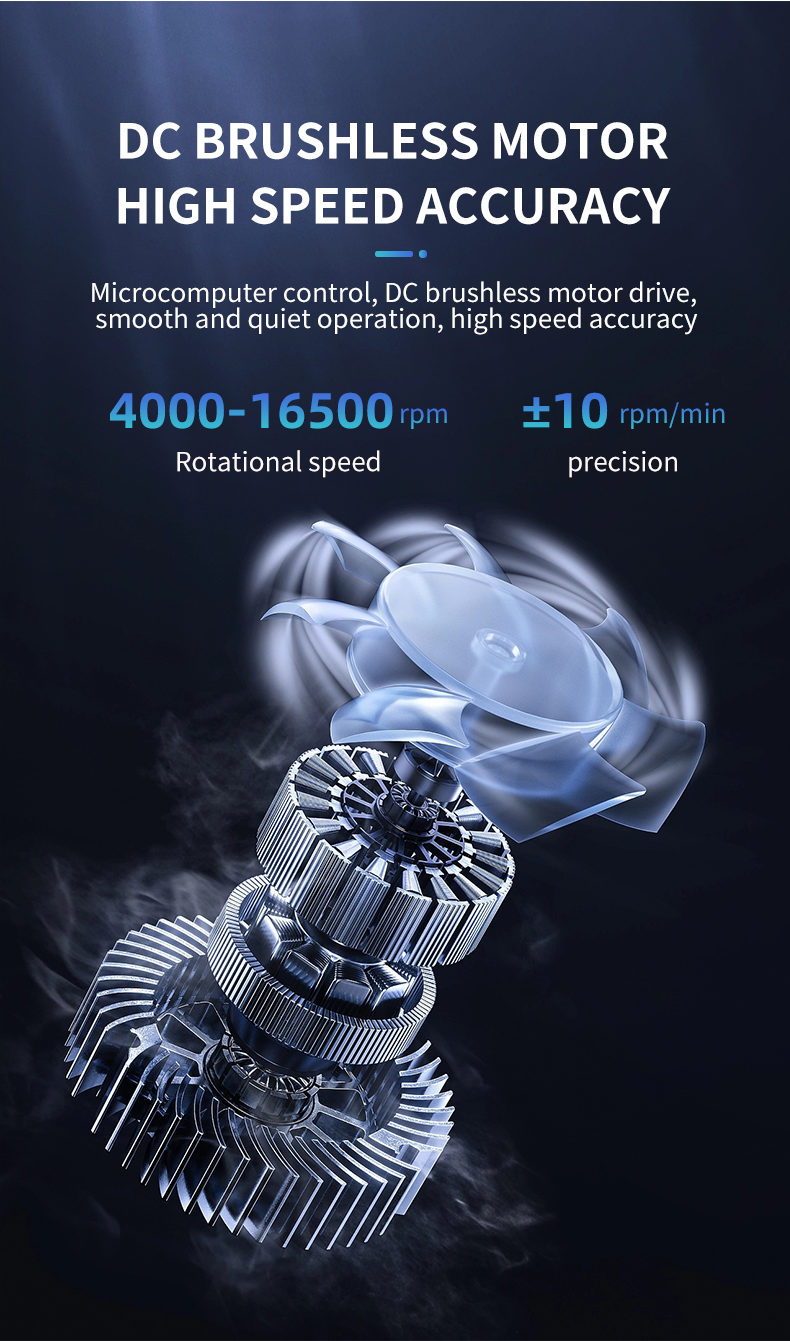

Drive Motor	Dc brushless motor

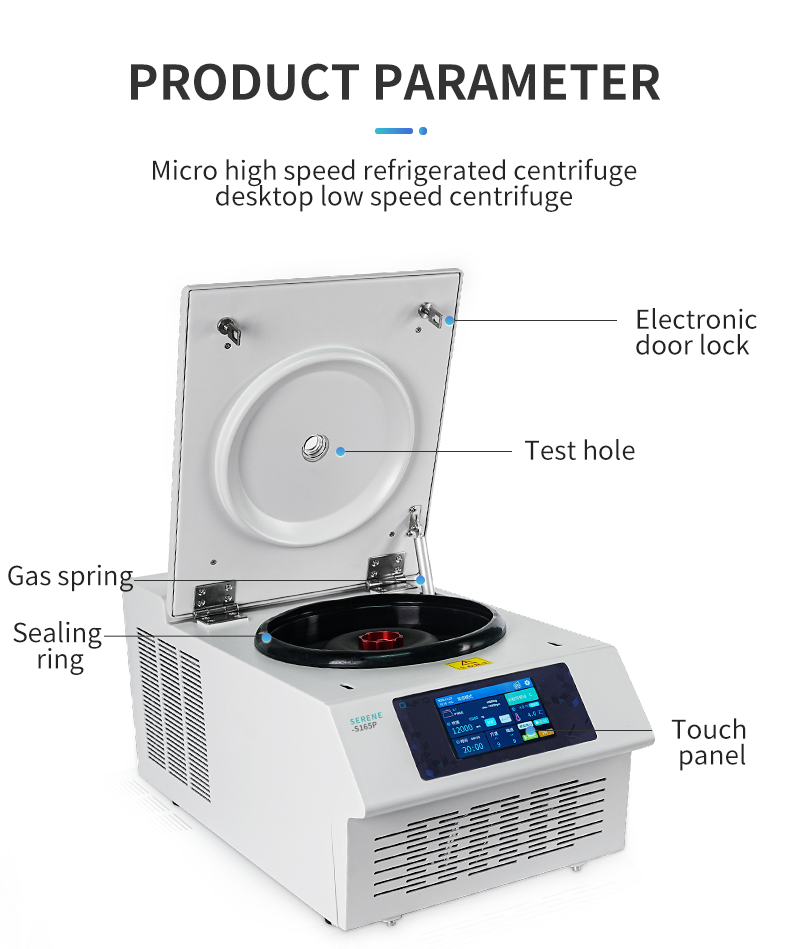

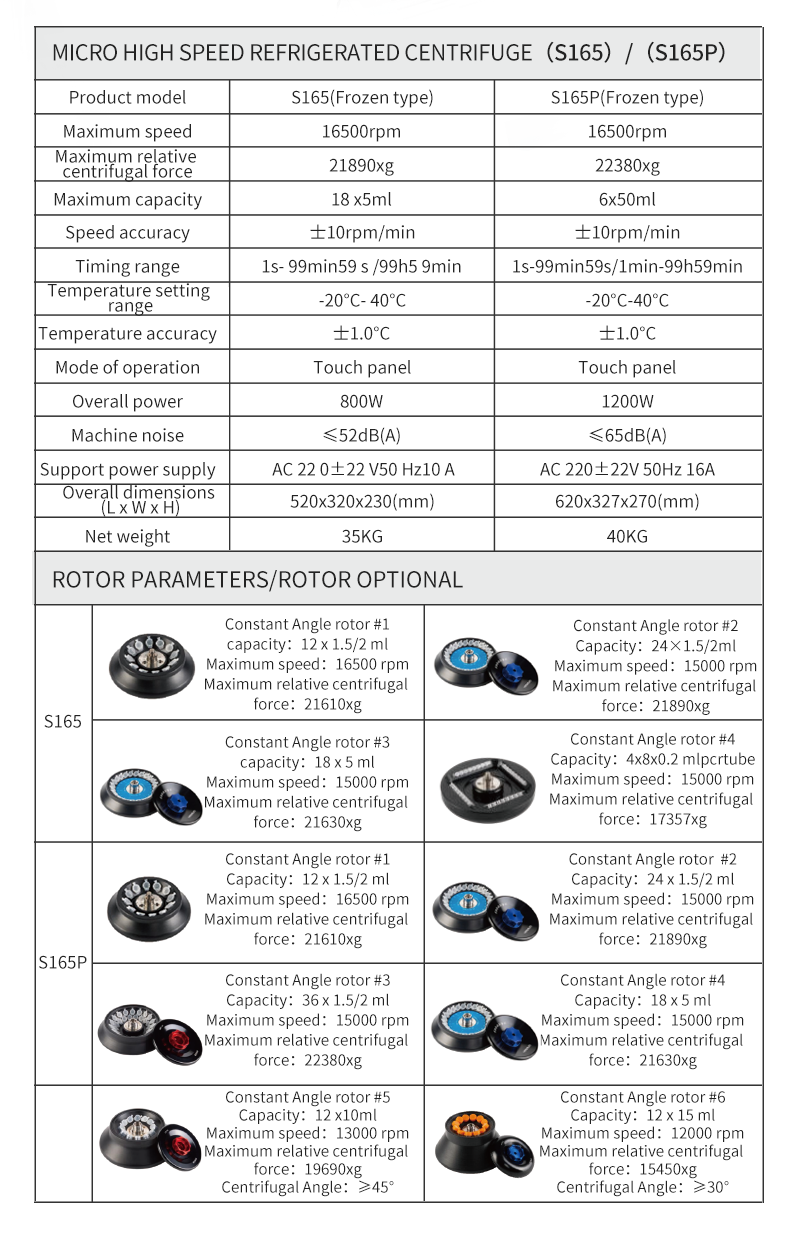

MICRO HIGH SPEED REFRIGERATED CENTRIFUGE (S165) / (S165P)
Product model	S165(Frozen type)	S165P(Frozen type)
Maximum speed	16500rpm	16500rpm
Maximum relative centrifugal force	21890xg	22380xg
Maximum capacity	18 x5ml	6x50ml
Speed accuracy	±10rpm/min	±10rpm/min
Timing range	1s- 99min59 s /99h5 9min	1s-99min59s/1min-99h59min
Temperature setting range	-20°C- 40°C	-20°C-40°C
Temperature accuracy	±1.0°C	±1.0°C
Mode of operation	Touch panel	Touch panel
Overall power	800W	1200W
Machine noise	≤52dB(A)	≤65dB(A)
Support power supply	AC 22 0±22 V50 Hz10 A	AC 220±22V 50Hz 16A
Overall dimensions (L x W x H)	520x320x230(mm)	620x327x270(mm)
Net weight	35KG	40KG
ROTOR PARAMETERS/ROTOR OPTIONAL
S165	Constant Angle rotor #1 capacity: 12 x 1.5/2 ml Maximum speed: 16500 rpm Maximum relative centrifugal force: 21610xg	Constant Angle rotor #2 Capacity: 24×1.5/2ml Maximum speed: 15000 rpm Maximum relative centrifugal force: 21890xg
S165	Constant Angle rotor #3 capacity: 18 x 5 ml Maximum speed: 15000 rpm Maximum relative centrifugal force: 21630xg	Constant Angle rotor #4 Capacity: 4x8x0.2 mlpcrtube Maximum speed: 15000 rpm Maximum relative centrifugal force: 17357xg
S165P	Constant Angle rotor #1 Capacity: 12 x 1.5/2 ml Maximum speed: 16500 rpm Maximum relative centrifugal force: 21610xg	Constant Angle rotor #2 Capacity: 24 x 1.5/2 ml Maximum speed: 15000 rpm Maximum relative centrifugal force: 21890xg
	Constant Angle rotor #3 Capacity: 36 x 1.5/2 ml Maximum speed: 15000 rpm Maximum relative centrifugal force: 22380xg	Constant Angle rotor #4 Capacity: 18 x 5 ml Maximum speed: 15000 rpm Maximum relative centrifugal force: 21630xg
	Constant Angle rotor #5 Capacity: 12 x10ml Maximum speed: 13000 rpm Maximum relative centrifugal force: 19690xg Centrifugal Angle: ≥45°	Constant Angle rotor #6 Capacity: 12 x 15 ml Maximum speed: 12000 rpm Maximum relative centrifugal force: 15450xg Centrifugal Angle: ≥30°

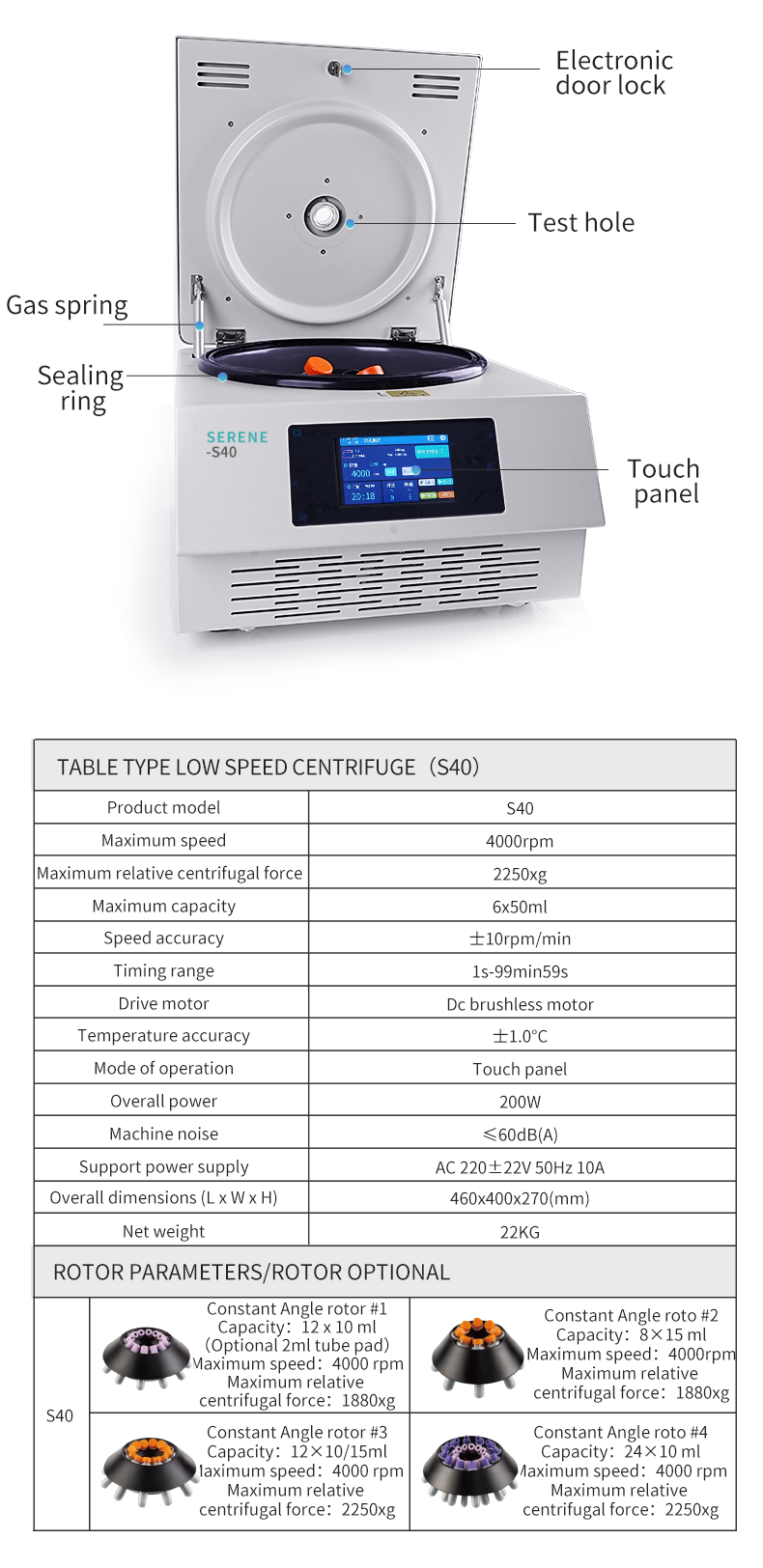

TABLE TYPE LOW SPEED CENTRIFUGE (S40)
Product model	S40
Maximum speed	4000rpm
Maximum relative centrifugal force	2250xg
Maximum capacity	6x50ml
Speed accuracy	±10rpm/min
Timing range	1s-99min59s
Drive motor	Dc brushless motor
Temperature accuracy	±1.0°C
Mode of operation	Touch panel
Overall power	200W
Machine noise	≤60dB(A)
Support power supply	AC 220±22V 50Hz 10A
Overall dimensions (L x W x H)	460x400x270(mm)
Net weight	22KG
ROTOR PARAMETERS/ROTOR OPTIONAL
S40	S40
Capacity: 12 x 10 ml (Optional 2ml tube pad) Maximum speed: 4000 rpm Maximum relative centrifugal force: 1880xg	Capacity: 8 x 15 ml Maximum speed: 4000rpm Maximum relative centrifugal force: 1880xg
S40	S40
Capacity: 12X10/15ml Maximum speed: 4000 rpm Maximum relative centrifugal force: 2250xg	Capacity: 24 × 10 ml Maximum speed: 4000 rpm Maximum relative centrifugal force: 2250xg
