Calm Series Vortex Mixer(Q5)

Product model:

Mixing Instrument Series

MESSAGE

product details

TECHNICAL PARAMETER

Host Parameter
Product Model	Q5
Input Voltage	DC24V
Input Power	30W
Motor/Drive Mode	DC24V permanent magnet motor/direct drive
Control Mode	PWM stepless speed regulation
Mode of Operation	lick: Light sensing action/continuous moCde
Power Fuse	PPTC/ Self-restoring fuse/No need to replace
Maximum Load	1.0Kg
Speed Range	200-3,000r/min.+5%
Type of Movement	circumference
Orbital Diameter	4.5mm
Speed Function/Display	high light LCD liquid crystal full segment
Time Function	digital timing 1S-999min/ countdown/point timing
Dimensions: Length x width x height	127mm x 147mm x 128mm
Weight	3.5Kg
Noise at Max.Speed(≈）	≤48dB(A)
Fastest Acceleration Time [sec]	≤3s
Fastest Deceleration Time [sec]	≤3s
Allowable Ambient TemperatureRelative Humidity	+5~40°C/80%
Protective Class	IP20
Interference Suppression Standard	EN61010-1, EN61010-2-020, EN61326-1, EN61010-3-2/A2

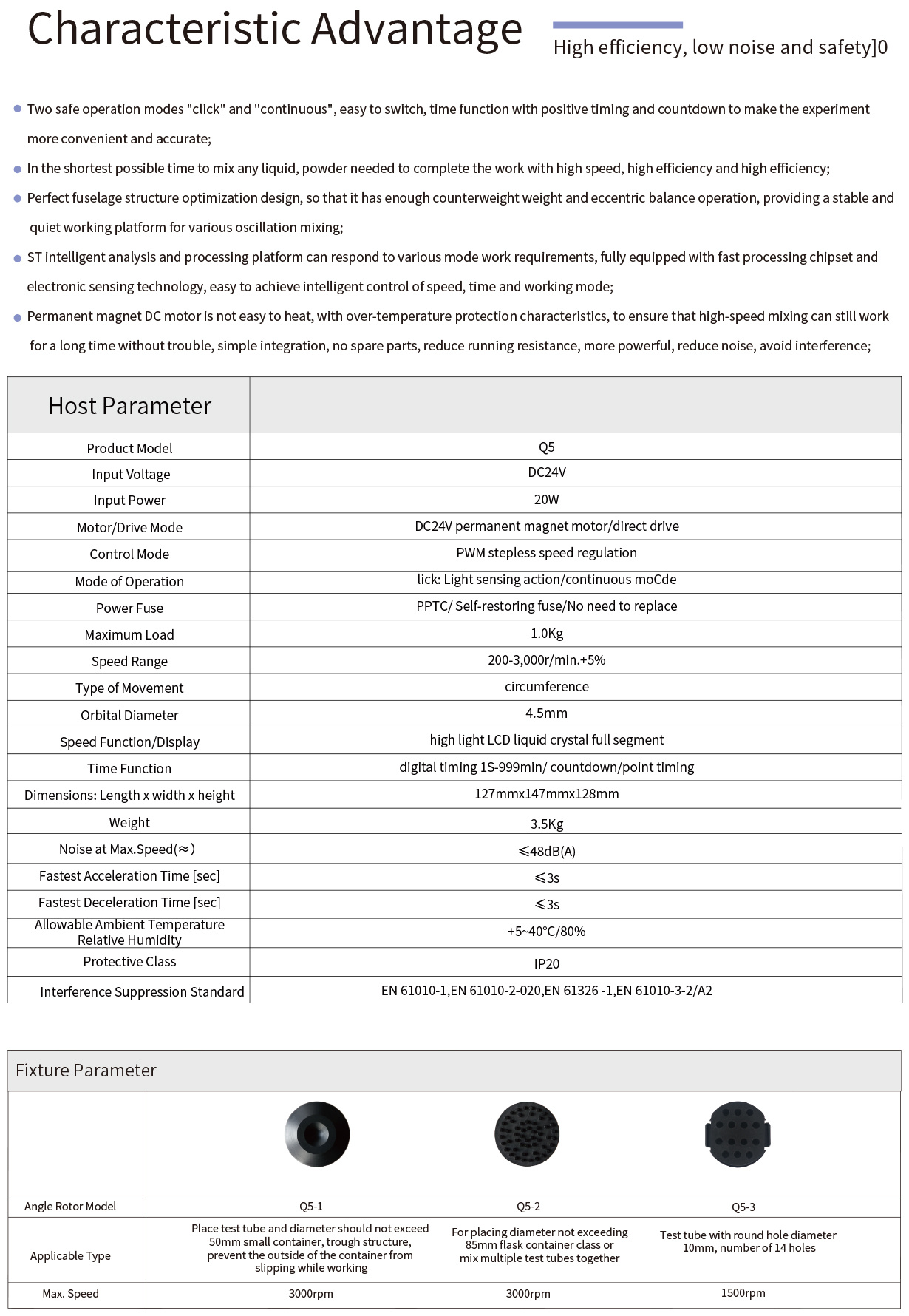

Characteristic Advantage
Two safe operation modes "click" and "continuous", easy to switch, time function with positive timing and countdown to make the experiment
more convenient and accurate;
In the shortest possible time to mix any liquid, powder needed to complete the work with high speed, high eﬃciency and high eﬃciency;
Perfect fuselage structure optimization design, so that it has enough counterweight weight and eccentric balance operation, providing a stable and quiet working platform for various oscillation mixing;
ST intelligent analysis and processing platform can respond to various mode work requirements, fully equipped with fast processing chipset and
electronic sensing technology, easy to achieve intelligent control of speed, time and working mode;
Permanent magnet DC motor is not easy to heat, with over-temperature protection characteristics, to ensure that high-speed mixing can still work for a long time without trouble, simple integration, no spare parts, reduce running resistance, more powerful, reduce noise, avoid interference;
