Calm Series Multifunctional Vortex Mixer(Q7)

Product model:

Mixing Instrument Series

MESSAGE

product details

TECHNICAL PARAMETER

Q7 Calm Multifunctional vortex mixer list
Host Parameter
Product Model	Q7
Input Voltage	DC24V
Input Power	30W
Motor/Drive Mode	DC24V permanent magnet motor/direct drive
Control Mode	PWM stepless speed regulation
Mode of Operation	Click: Light sensing action/continuous mode
Power Fuse	pptc/Self-restoring fuse/No need to replace
Maximum Load	1.0Kg
Speed Range	200-3,000r/min.±15%
Type of Movement	circumference
Orbital Diameter	4.5mm
Fixture Identiﬁcation Function	Automatic identiﬁcation/secure and eﬃcient
Speed Function/Display	Full segment/high light LED digital tube
Time Function	Digital timing 1S-999min. Countdown/point timing
Dimensions: Length x width x height	198mm × 138mm × 67mm
Weight	4.1kg
Noise at Max.Speed(≈）	≤45dB(A)
Fastest Acceleration Time [sec]	≤3s
Fastest Deceleration Time [sec]	≤3s
Allowable Ambient TemperatureRelative Humidity	+5~40°C/80%
Protective Class	IP20
Interference Suppression Standard	EN61010-1, EN61010-2-020, EN61326-1, EN61010-3-2/A2

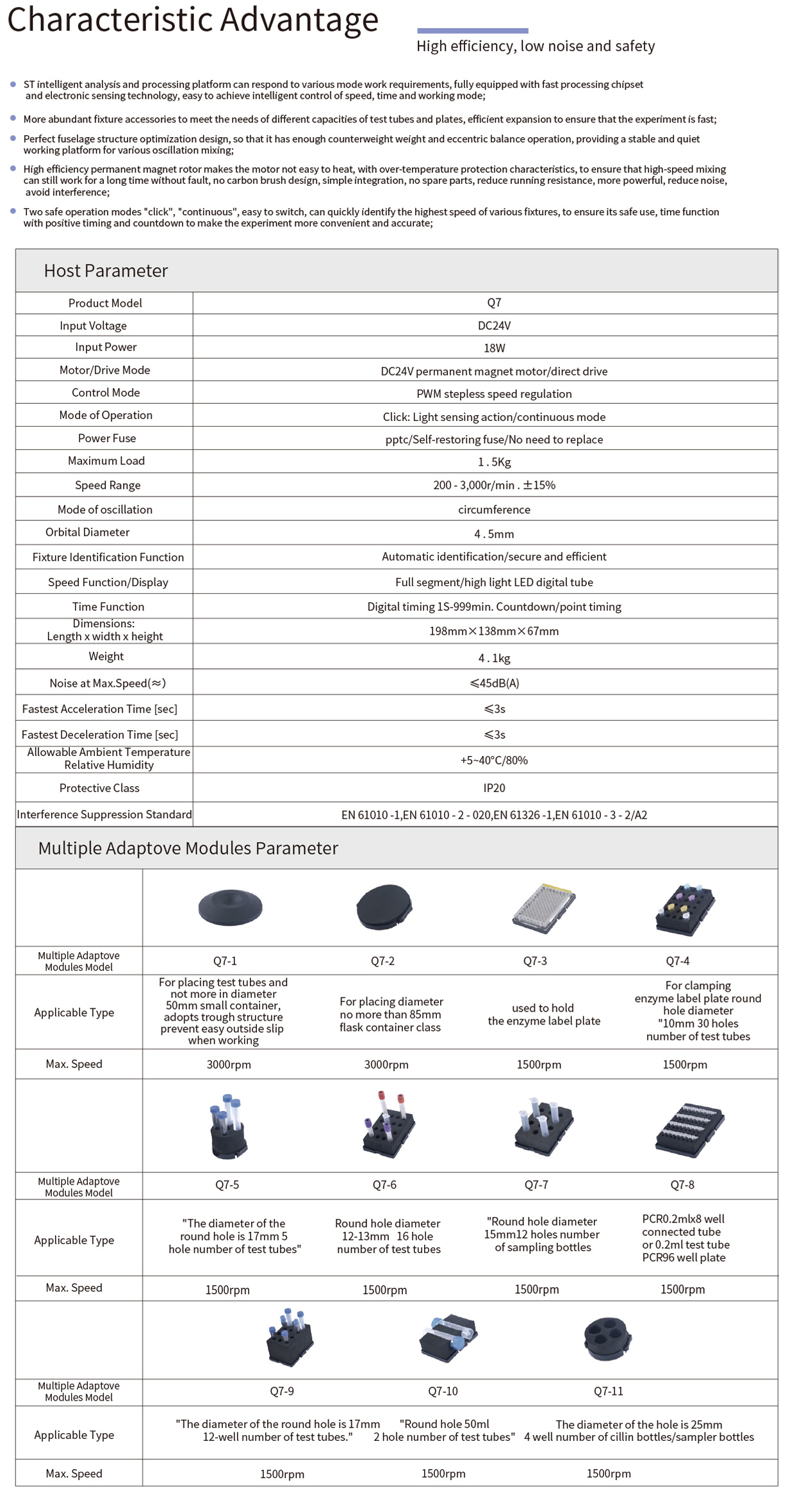

Characteristic Advantage
ST intelligent analysis and processing platform can respond to various mode work requirements, fully equipped with fast processing chipset
and electronic sensing technology, easy to achieve intelligent control of speed, time and working mode;
More abundant ﬁxture accessories to meet the needs of diﬀerent capacities of test tubes and plates, eﬃcient expansion to ensure that the experiment is fast;
Perfect fuselage structure optimization design, so that it has enough counterweight weight and eccentric balance operation, providing a stable and quiet
working platform for various oscillation mixing;
High eﬃciency permanent magnet rotor makes the motor not easy to heat, with over-temperature protection characteristics, to ensure that high-speed mixing can still work for a long time without fault, no carbon brush design, simple integration, no spare parts, reduce running resistance, more powerful, reduce noise, avoid interference;
Two safe operation modes "click", "continuous", easy to switch, can quickly identify the highest speed of various ﬁxtures, to ensure its safe use, time function
with positive timing and countdown to make the experiment more convenient and accurate;
